MZ99 Actuated Package
MZ99 Actuated Package
- Size range 1/2" - 2"
- Economical 3-Way Ball Valve
- Pressure rated for 1000 WOG
- L-Port and T-Port options
- Positive shut-off on any of the three ports
- Full Port flow path for maximum flow
- Complete 316 Stainless Steel construction
- Threaded Ends (FNPT)

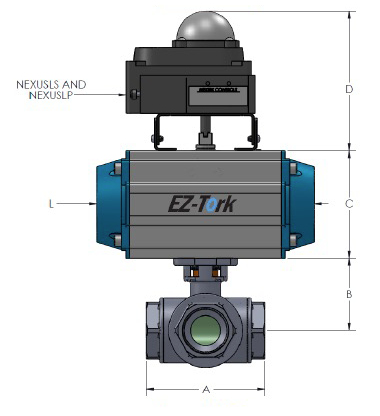

Side View

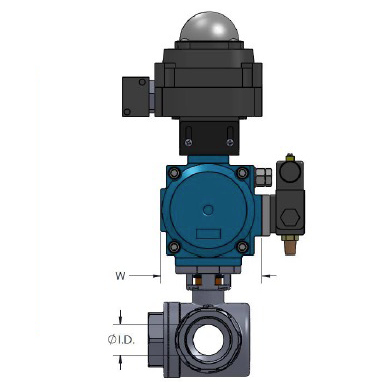

Front View
MZ9 Ball Valve Series (in.)
| SIZE | Ø I.D. | A | B |
|---|---|---|---|
| 1/2" | 0.63 | 3.39 | 1.73 |
| 3/4" | 0.79 | 3.90 | 2.13 |
| 1" | 0.98 | 4.61 | 2.31 |
| 1-1/2" | 1.50 | 5.83 | 3.31 |
| 2" | 1.97 | 6.69 | 3.62 |
EZ-TORK Actuator Dimensions (in.)
| MODEL | Actuator Code | L (Length) | W** (Width) | C (Height) | |
|---|---|---|---|---|---|
| DA | SR | ||||
| 50 | BNB | - | 6.06 | 2.78 | 2.76 |
| - | |||||
| 65 | CNB | CDB | 7.44 | 3.52 | 3.50 |
| - | |||||
| 75 | DNB | DAB | 8.27 | 4.04 | 3.94 |
| DDB | |||||
| 85 | ENB | EAB | 9.02 | 4.43 | 4.45 |
| EDB | |||||
| 95 | - | FAB | 10.39 | 4.96 | 4.84 |
| - | |||||
| 110 | - | GDB | 10.47 | 5.45 | 5.35 |
| - | |||||
| 125 | - | HAB | 13.27 | 6.18 | 6.34 |
| - | |||||
Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.
| Limit Switch | D** | Rating |
|---|---|---|
| SVF | (in.) | |
| NEXUSLS | 5.0 | NEMA4 |
| NEXUSLP | 7.0 | NEMA4 |
| Pilot Valve | Add to "W" |
|---|---|
| SVF | (in.) |
| Series PV | 2.0 |
