BZ99 Actuated Package

Valve Catalog

BZ99 Actuated Package

  • Size range 1/2"- 2"
  • Bronze 3-piece ball valve
  • Pressure rated for 600 psi
  • Full Port flow path for maximum flow
  • Built-In ISO 5211 direct mounting pad for easy automation
  • End connections include SE (Screwed Ends, FNPT)

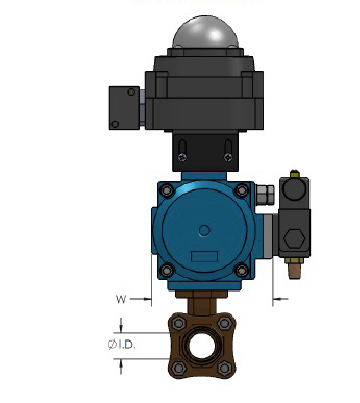

Side View

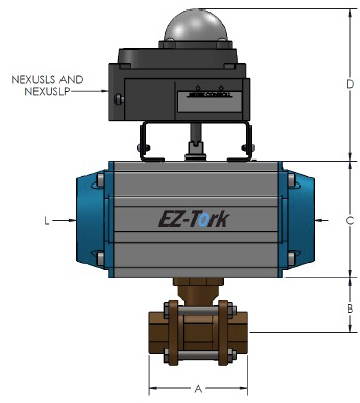

Front View

BZ9 Ball Valve Series (in.)

SIZE Ø I.D. A1 (SE END) A2 (TE END) B
1/2" 0.59 2.91 2.60 1.57
3/4" 0.81 3.19 3.07 1.85
1" 0.98 3.74 3.62 2.05
1-1/2" 1.50 4.37 4.53 2.83
2" 1.97 5.20 5.71 3.15

EZ-TORK Actuator Dimensions (in.)

MODEL Actuator Code L (Length) W** (Width) C (Height)
DA SR
32 ANB - 4.33 1.85 1.97
-
50 BNB BAB 6.06 2.78 2.76
BDB
65 CNB CAB 7.44 3.52 3.50
CDB
75 DNB DAB 8.27 4.04 3.94
-
85 ENB EAB 9.02 4.43 4.45
EDB
95 FNB FAB 10.39 4.96 4.84
-

Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.

Limit Switch D** Rating
SVF (in.)
NEXUSLS 5.0 NEMA4
NEXUSLP 7.0 NEMA4
Pilot Valve Add to "W"
SVF (in.)
Series PV 2.0
