VIMK - Lead Free Vinyl Ice Maker Supply Connector
Downloads:
VIMK - Lead Free Vinyl Ice Maker Supply Connector
• Lead Free
• Vinyl Reinforced Flexible Ice Maker Connector
• 1/4" OD
• Max. 125 PSI
• Approvals: UPC, NSF 14, NSF 61, NSF 372

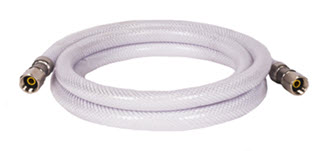

VIMK-60LF - 60" Long
VIMK-72LF - 72" Long
VIMK - Vinyl Ice Maker Connector - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Nut | HPb59-3 |
| 2 | Washer | EPDM |
| 3 | Insert | Brass C37100 |
| 4 | Ferrule | Stainless Steel 304 |
| 5 | Hose | PVC |
| 6 | Washer | EPDM |
