VDWB - Lead Free Vinyl Dishwasher Connector w/ Brass Nut
Downloads:
VDWB - Lead Free Vinyl Dishwasher Connector w/ Brass Nut
• Lead Free
• 3/8" OD x 1/2"
• With Brass Nut
• cUPC Certified
• NSF Approved
VDWB-60LF - 60" Long, With 3/8" Elbow
VDWB-60LELF - 60" Long, Less Elbow
VDWB-60LF - 60" Long, With 3/8" Elbow | VDWB-60LELF - 60" Long, Less Elbow

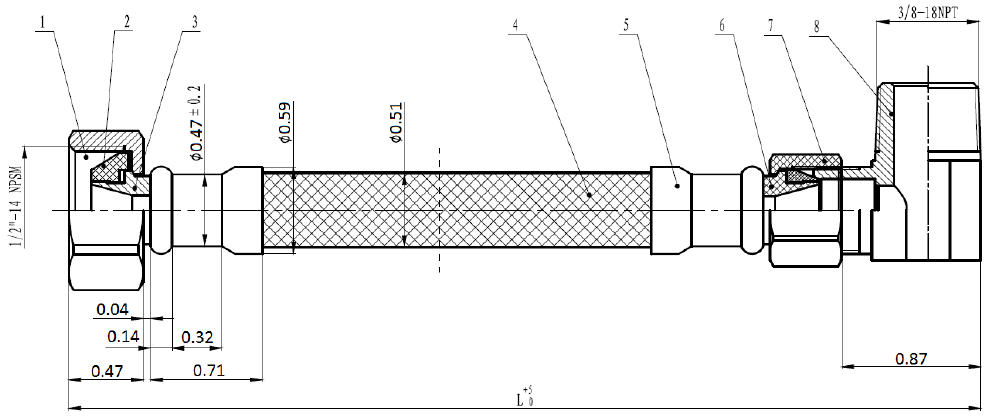

VDWB-60LF - 60" Long, With 3/8" Elbow
VDWB-60LF - 60" Long, With 3/8" Elbow - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Nut | Brass HPb59-3 |
| 2 | Washer | EPDM |
| 3 | Core | Brass C46500 |
| 4 | Hose | PVC |
| 5 | Ferrule | SS 304 |
| 6 | Washer | EPDM |
| 7 | Nut | Brass HPb59-3 |
| 8 | Core | Brass C46500 |

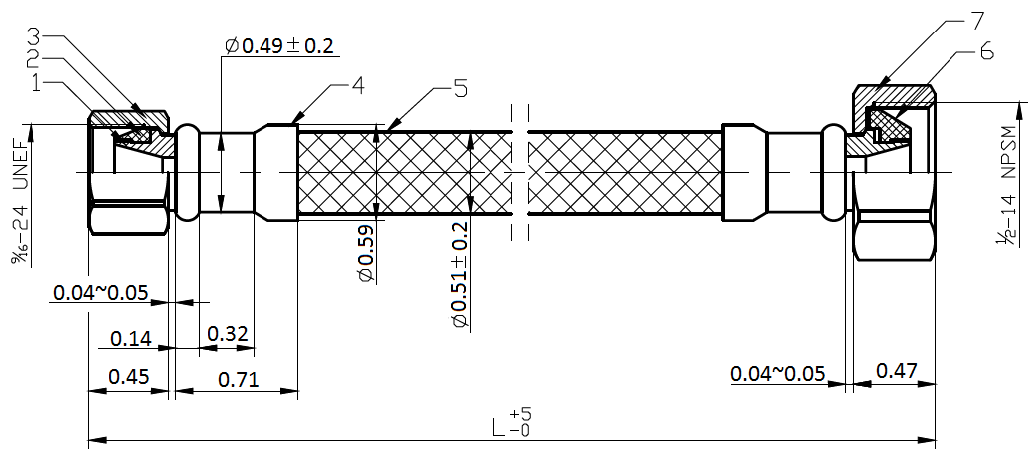

VDWB-60LELF - 60" Long, Less Elbow
VDWB-60LELF - 60" Long, Less Elbow - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Nut | Brass HPb59-3 |
| 2 | Washer | EPDM |
| 3 | Core | Brass C46500 |
| 4 | Hose | PVC |
| 5 | Ferrule | SS 304 |
| 6 | Washer | EPDM |
| 7 | Nut | Brass HPb59-3 |
