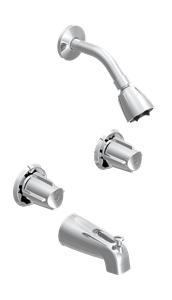

VE-830C Two Handle Tub & Shower Trim, Slip on Diverter Spout
VE-830C Two Handle Tub & Shower Trim, Slip on Diverter Spout
- Round Metal Handles
- IP Rough
- Chrome
.jpg){kind=small}
Two Handle Tub & Shower Trim, Slip on Diverter Spout - Material Specifications
| No. | Part | Part No. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Shower Head | 635018 | ||||||||||
| 2 | Shower Arm | 616063 | ||||||||||
| 3 | Shower Arm Flange | 620031 | ||||||||||
| 4 | Screw | 623240 | ||||||||||
| 5.1 | Metal Handle-Cold | 623086 | ||||||||||
| 5.2 | Metal Handle-Hot | 623085 | ||||||||||
| 6 | Escutcheon | 620010 | ||||||||||
| 7 | Sleeve | 647206 | ||||||||||
| 8 | Stem Extension-Hot | 622009 | ||||||||||
| 9 | Seat & Spring Set | 642024 | ||||||||||
| 10 | Cartridge Assembly | 626001 | ||||||||||
| 11 | Union Nut | 644003 | ||||||||||
| 12 | Spout W/Diverter | 617005 | ||||||||||
| 13 | Hex Wrench (H 4 * 23 mm L * 56 mm L) | 640009 | ||||||||||
