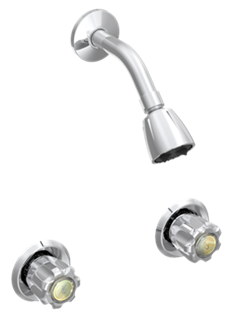

VE-822C Two Handle Shower Only Trim
Downloads:
VE-822C Two Handle Shower Only Trim
- Acrylic Handles
- IP Rough
- Chrome
.jpg){kind=small}
Two Handle Tub & Shower Trim, Slip on Diverter Spout - Material Specifications
| No. | Name | Part No. | ||
|---|---|---|---|---|
| 1 | Shower Head | 635018 | ||
| 2 | Shower Arm | 616063 | ||
| 3 | Shower Arm Flange | 620031 | ||
| 4.1 | Index Button-Cold | 624140 | ||
| 4.2 | Index Button-Hot | 624141 | ||
| 5 | Screw | 642046 | ||
| 6 | Acrylic Handle | 623107 | ||
| 7 | Escutcheon | 620010 | ||
| 8 | Sleeve | 622009 | ||
| 9 | Stem Extension-Hot | 627014 | ||
| 10 | Seat & Spring Set | 627009 | ||
| 11 | Cartridge Assembly | 626001 | ||
| 12 | Union Nut | 644003 | ||
| 13 | Spout W/ Diverter | 617005 | ||
| 14 | Hex Wrench (H 4 * 23 mm L * 56 mm L) | 640009 | ||
| 15 | Plug | 642121 | ||
