CL-312CH Two Handle Heavy Duty Wallmount Kitchen Faucet

Faucet Catalog

CL-312CH Two Handle Heavy Duty Wallmount Kitchen Faucet

  • Metal Lever Handles
  • 8" Centers
  • 12" Cast Spout
  • Chrome

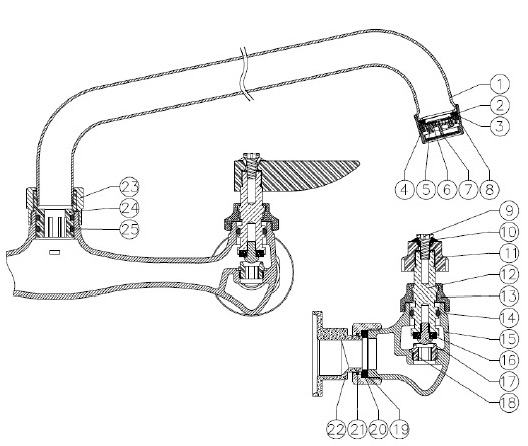

Two Handle Heavy Duty Wallmount Kitchen Faucet CL-312CH - Material Specifications

No. Part Material
1 Outlet Brass C37700
2 Gasket EPDM
3 Cap Brass C37700
4 Steel Bridge POM
5 Cover POM
6 Gasket POM
7 Wire Mesh Stainless Steel 304
8 Plastic Sheet POM
9 Screw Stainless Steel 304
10 Washer ABS
11 Handwheel Zinc
12 Stem Brass C89550
13 Cap Nut Brass C37700
14 O-Ring EPDM
15 Body Brass C89550
16 Gasket EPDM
17 Crossed Screw Brass C89550
18 Check Core Brass C89550
19 Nut Brass C37700
20 Gasket EPDM
21 Buckle Stainless Steel 304
22 Connector Brass C89550
23 Nut Brass C37700
24 Connector Brass C89550
25 O-Ring BUNA SN-719F
