Trap J - 2" x 1- 1/2" Swing Tee Trap- IPS With Cleanout

Downloads:

Trap J - 2" x 1- 1/2" Swing Tee Trap- IPS With Cleanout

• Rough Brass
• Swing Tee Trap- IPS
• 2" x 1- 1/2"
• With Cleanout

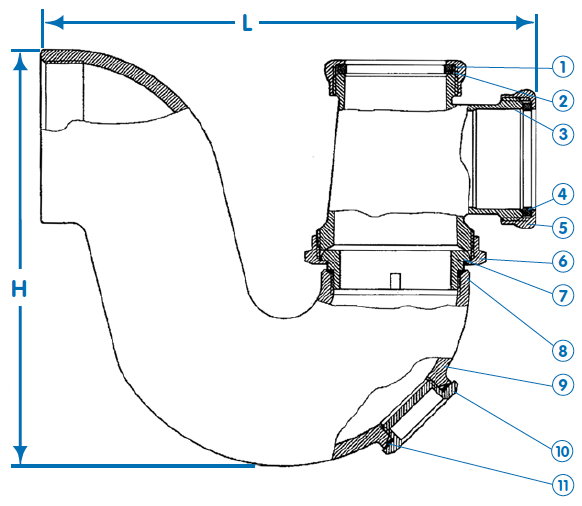

Trap J - 2" x 1-1/2" Swing Tee Trap - IPS With Cleanout - Material Specifications

No.  Part Material
1 Packing Nut Brass
2 Packing Rubber
3 Body 2 Brass
4 Packing Rubber
5 Packing Nut Brass
6 Nipple Nut Brass
7 Nipple Brass
8 O Ring Rubber
9 Body 1 Brass
10 Packing Fibre
11 Bonnet Brass

Dimensions

Part # Size H L
Trap J 2" FIP x 1-1/2" 6.19 7.29
