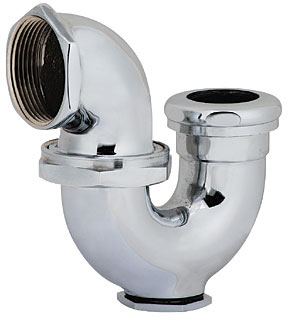

Trap A - 1-1/2" x 1- 1/4" LA Trap- IPS With Cleanout

Trap A - 1-1/2" x 1- 1/4" LA Trap- IPS With Cleanout

• Chrome Plated Cast Brass
• LA Trap- IPS
• 1- 1/2" x 1- 1/4"
• With Cleanout

Trap A - 1-1/2" x 1-1/4" LA Trap - IPS With Cleanout - Material Specifications

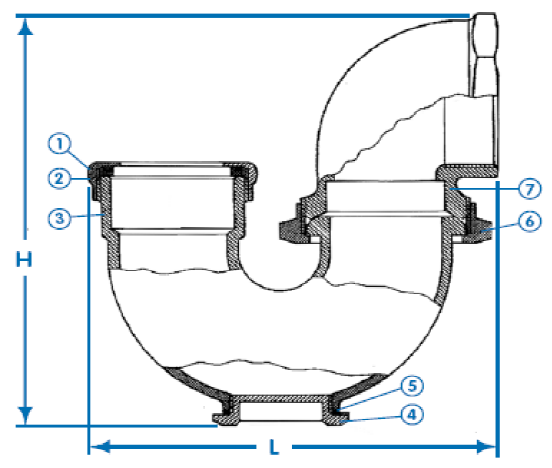

No. Part Material
1 Packing Nut Brass
2 Packing Rubber
3 Body Brass
4 Bonnet Brass
5 Packing PTFE
6 Nipple Nut Brass
7 Body Brass

Dimensions

Part # Size H L
Trap-A 1-1/2” FIP X 1-1/4” 5.52 4.98
