VE-870C Three Handle Tub & Shower Trim, Slip on Spout
Downloads:

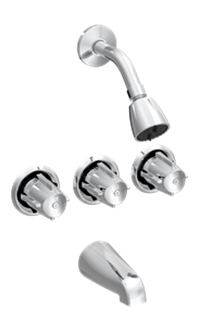

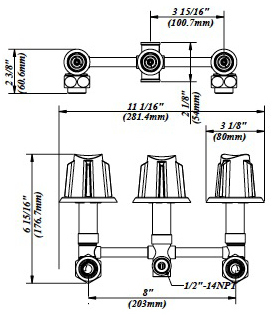

VE-870C Three Handle Tub & Shower Trim, Slip on Spout
- Round Metal Handles
- IP Rough
- Chrome
.jpg){kind=small}

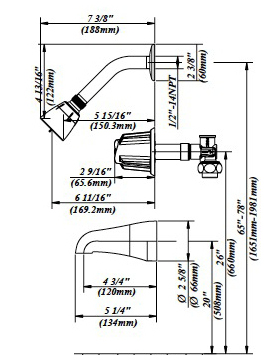

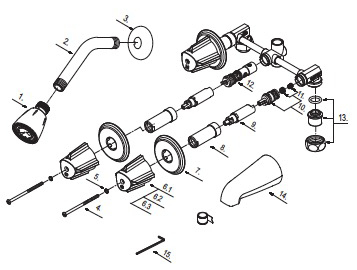

Three Handle Tub & Shower Trim, Slip on Spout VE-870C - Material Specifications
| No. | Part | Part No. | ||
|---|---|---|---|---|
| 1 | Shower Head | 635018 | ||
| 2 | Shower Arm | 616063 | ||
| 3 | Shower Arm Flange | 620031 | ||
| 4 | Screw | 620002 | ||
| 5.1 | Metal Handle-Cold | 623086 | ||
| 5.2 | Metal Handle-Hot | 623085 | ||
| 5.3 | Metal Handle-Diverter | 623087 | ||
| 6 | Escutcheon | 620010 | ||
| 7 | Sleeve | 622009 | ||
| 8 | Stem Extension-Hot | 627014 | ||
| 9 | Seat & Spring Set | 642024 | ||
| 10 | Cartridge Assembly | 626001 | ||
| 11 | Diverter Cartridge | 630005 | ||
| 12 | Union Nut | 644003 | ||
| 13 | Spout Less Diverter | 617034 | ||
| 14 | Hex Wrench (H 8 * 20 mm L * 57 mm L) | 642121 | ||
