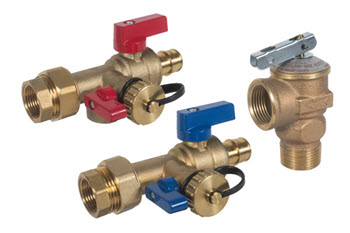

TWHK04PXCE - Tankless Water Heater Isolation Valve Kit - FNPT x PEX F1960
TWHK04PXCE - Tankless Water Heater Isolation Valve Kit - FNPT x PEX F1960
• Lead Free Brass Material
• 600# Rating (Non-Shock)
• Set of 2 Heavy Duty Forged Brass Body
• Stainless Steel Ball
• Pressure Rating: 125 PSI Maximum
• Temperature Range: 40° F to 180° F
• Double O-Ring Stem Seal
• Large Drain Port Outlets (Full Port)
• PEX End Conform to ASTM F1960
• NSF372, NSF61, cUPC & IAPMO Approved
• Size 3/4” FNPT x PEX F1960
Pressure Relief Valve:
• 150 PSI Rated @ 500,000 btu/hr
• Pressure Relief Valve is ASME Section IV,
ANSI Z21.22 and CSA 4.4 Certified
• Size 3/4”
DIMENSIONS
Size | 3/4" |
---|---|
ØD1 | 0.75 |
ØD2 | 0.39 |
H1 | 1.69 |
H2 | 1.28 |
W1 | 5.28 |
W2 | 2.87 |
W3 | 1.22 |
W4 | 2.36 |
W5 | 1.18 |
L1 | 1.44 |
L2 | 0.99 |
MATERIAL SPECIFICATIONS
No. | Part | Material |
---|---|---|
1 | Cap | Lead Free Brass |
2 | Seat (Qty 2) | PTFE |
3 | Ball | Stainless Steel |
4 | Gasket | PTFE |
5 | O-Ring (Qty 2) | EPDM |
6 | Stem | Brass |
7 | Screw | Plated Steel |
8 | Handle | Alloy |
9 | Body | Lead Free Brass |
10 | Snap Spring | Stainless Steel |
11 | Cap Nut | Brass |
12 | Rubber Washer | EPDM |
13 | Cap | Lead Free Brass |
14 | Seat (Qty 2) | PTFE |
15 | Ball | Stainless Steel |
16 | Handle | Alloy |
17 | Stem | Brass |
18 | Screw | Plated Steel |
19 | O-Ring (Qty 2) | EPDM |
20 | Cap | Lead Free Brass |
21 | Cap Nut | Brass |
22 | Rubber Washer | EPDM |
23 | Chain | PVC |
PRV04CA PRESSURE RELIEF VALVE
Part | Material |
---|---|
Body | Bronze |
Internal Parts | Brass & Stainless Steel |
Seat Disc | Silicone |
Pressure Spring | Stainless Steel |
DIMENSIONS
Size | A | B | C |
---|---|---|---|
3/4" | 1-5/32" | 1-9/16” | 1-25/32” |
