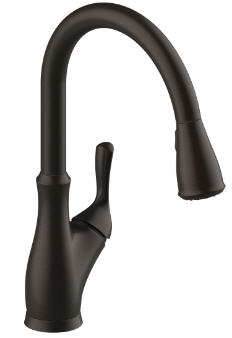

AN-151ORB Single Handle Pull-Down Kitchen Faucet

  • Metal Lever Handle
  • Ceramic Cartridge
  • 1 or 3 Hole Installation
  • Optional Deckplate Included
  • 1.8 GPM Flow Rate @ 60 PSI (Aerated & Spray)
  • Quick Connect Feature
  • California Energy Commission Compliant
  • Oil Rubbed Bronze

Single Handle Pulldown Kitchen Faucet - Material Specifications

No. Name Part No.
1 Spray Head RP38241
2 O-Ring RP60071
3 Wearable Ring RP70380
4 Cartridge RP20005
5 Bonnet RP70394
6 Cap RP80028
7 Screw RP50015
8 Handle RP13390
9 Set Screw RP50002
10 Flange RP80463
11 Escutcheon RP80461
12 Gasket RP80462
13 Bolt RP50071
14 Mounting Nut RP56036
15 Block RP70421
16 O-Ring RP60002
17 Quick Connect Assembly RP70429
18 O-Ring RP60089
19 Weight RP70441
20 Weight Clip RP64204
21
Rubber Washer
RP64023
22 Metal Washer RP64024
23 Nut RP56075
24 Screw RP50004
25 Hex Allen Wrench RP70221
