SST - Braided Stainless Steel Closet Connector
Downloads:
SST - Braided Stainless Steel Closet Connector
• 3/8" Compression x 7/8" Ballcock
• With Chrome Brass Nuts
• cUPC Certified
SST-09M - 9'" Long
SST-12M - 12" Long
SST-20M - 20" Long
• 1/2" Compression x 7/8" Ballcock
• With Chrome Brass Nuts
• cUPC Certified
SST-039M - 9'" Long

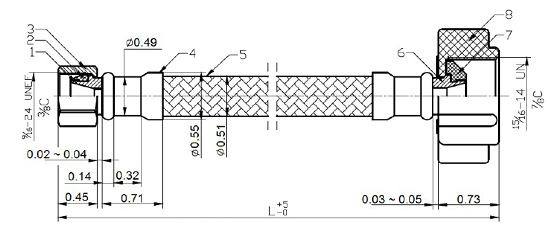

• 3/8" Compression x 7/8" Ballcock
• With Chrome Plastic Nuts
• cUPC Certified
SST-09P - 9" Long
SST-12P - 12" Long

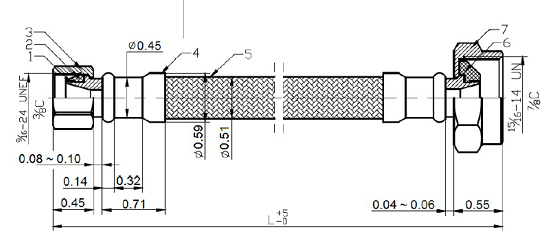

SST(M) Braided Closet Connector - Material Specifications
| No. | Part | Material | |
|---|---|---|---|
| 1 | Core | Brass C3600 | |
| 2 | Washer | EPDM | |
| 3 | Nut | Brass HPb59-3 | |
| 4 | Ferrule | Brass H62 | |
| 5 | Braided Hose | Stainless Steel 304 | |
| 6 | Washer | EPDM | |
| 7 | Nut | Brass HPb59-3 | |
SST-039M Braided Closet Connector - Material Specifications
| No. | Part | Material | |
|---|---|---|---|
| 1 | Core | Brass BCW617N | |
| 2 | Washer | EPDM | |
| 3 | Nut | Brass HPb59-3 | |
| 4 | Ferrule | PVC/Stainless Steel 304 | |
| 5 | Braided Hose | Stainless Steel 304 | |
| 6 | Washer | EPDM | |
| 7 | Nut | Brass HPb57-3 | |
