PVC Van Stone Flanges - Sch 80
PVC Van Stone Flanges - Sch 80
• Loose Ring Flange
• Conforms to ASTM D-2467
• Schedule 80
• 150 PSI @ 73.4 F
• Flange sizes 2" - 10"

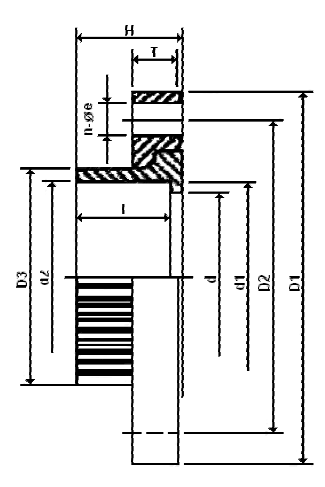

Dimensions
| Part # | Size | D1 | D2 | D3 | d | d1 | d2 | H | T | I | n-Øe | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCF08 | 2” | 5.99 | 4.77 | 2.99 | 2.01 | 2.37 | 2.39 | 1.69 | 0.19 | 1.50 | 4-19 | |
| PVCF10 | 3” | 7.56 | 5.99 | 4.26 | 3.03 | 3.49 | 3.52 | 2.13 | 1.02 | 1.88 | 4-19 | |
| PVCF11 | 4” | 9.02 | 7.53 | 5.24 | 4.02 | 4.49 | 4.52 | 2.52 | 1.10 | 2.25 | 8-19 | |
| PVCF13 | 6” | 11.19 | 9.50 | 7.53 | 6.15 | 6.62 | 6.66 | 3.35 | 1.26 | 3.00 | 8-22 | |
| PVCF14 | 8” | 13.51 | 11.74 | 9.38 | 8.04 | 8.62 | 8.67 | 4.65 | 1.42 | 4.02 | 8-22 | |
| PVCF15 | 10” | 16.00 | 14.26 | 12.21 | 10.09 | 10.75 | 10.80 | 5.91 | 1.65 | 4.85 | 12-24 | |
