P759EXT - 759 Ball Valve Extension
P759EXT - 759 Ball Valve Extension

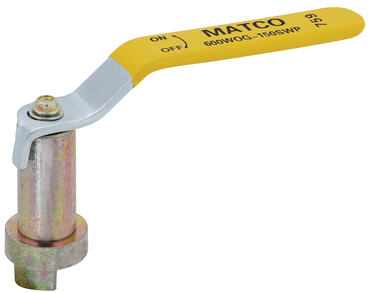

• Ball Valve Stem Extension
• Fits Sweat, IPS and Lead Free
• Does Not Fit the 759 Press Ball Valves
DIMENSIONS
MATERIAL SPECIFICATIONS
| Part # | Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| P759EXT03 | 1/2” | 2.05 | 0.55 | 4.14 | 0.51 | 14 NPT | 3.70 |
| P759EXT04 | 3/4” | 2.30 | 0.57 | 4.14 | 0.71 | 14 NPT | 3.95 |
| No. | Part | Material |
|---|---|---|
| 1 | Screw | Steel |
| 2 | Washer | Local Brass |
| 3 | Handle | Steel |
| 4 | Heightened Stem Part 1 | Local Brass |
| 5 | Hex-nut | Local Brass |
| 6 | Heightened Stem Part 2 | Local Brass |
| 7 | Packing Nut | Local Brass |
| 8 | Packing Gland | PTFE |
| 9 | O-Ring | EPDM |
| 10 | Washer | PTFE |
| 11 | Stem | C36000 |
| 12 | Body | C37700 |
| 13 | Ball | Local Brass |
| 14 | Seat | PTFE |
| 15 | Bonnet | C37700 |
DIMENSIONS
MATERIAL SPECIFICATIONS
| Part # | Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| P759EXT05 | 1” | 2.80 | 0.69 | 4.14 | 0.95 | 11.5 NPT | 4.14 |
| P759EXT08 | 2” | 4.20 | 0.75 | 7.09 | 1.95 | 11.5 NPT | 5.44 |
| No. | Part | Material |
|---|---|---|
| 1 | Screw | Steel |
| 2 | Washer | Local Brass |
| 3 | Handle | Steel |
| 4 | Heightened Stem Part 1 | Local Brass |
| 5 | Hex-nut | Local Brass |
| 6 | Heightened Stem Part 2 | Local Brass |
| 7 | Packing Nut | Local Brass |
| 8 | Packing Gland | PTFE |
| 9 | O-Ring | EPDM |
| 10 | Washer | PTFE |
| 11 | Stem | C36000 |
| 12 | Body | C37700 |
| 13 | Ball | Local Brass |
| 14 | Seat | PTFE |
| 15 | Bonnet | C37700 |
DIMENSIONS
MATERIAL SPECIFICATIONS
| Part # | Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| P759EXT03LF | 1/2” | 2.05 | 0.55 | 3.07 | 0.51 | 14 NPT | 3.70 |
| P759EXT04LF | 3/4” | 2.30 | 0.57 | 4.14 | 0.71 | 14 NPT | 3.95 |
| P759EXT05LF | 1” | 2.80 | 0.69 | 4.14 | 0.95 | 11.5 NPT | 4.14 |
| P759EXT067LF | 1-1/4” | 3.15 | 0.69 | 4.93 | 1.20 | 11.5 NPT | 4.72 |
| P759EXT067LF | 1-1/2” | 3.51 | 0.71 | 4.93 | 1.46 | 11.5 NPT | 4.89 |
| P759EXT08LF | 2” | 4.20 | 0.75 | 7.09 | 1.95 | 11.5 NPT | 5.44 |
| No. | Part | Material |
|---|---|---|
| 1 | Screw | Steel |
| 2 | Washer | Local Brass |
| 3 | Handle | Steel |
| 4 | Heightened Stem Part 1 | Local Brass |
| 5 | Hex-nut | Local Brass |
| 6 | Heightened Stem Part 2 | Local Brass |
| 7 | Packing Nut | Local Brass |
| 8 | Packing Gland | PTFE |
| 9 | O-Ring | EPDM |
| 10 | Washer | PTFE |
| 11 | Stem |
1/2-1: C46500 1-1/4-2: Local Brass |
| 12 | Body | C37700 |
| 13 | Ball |
1/2-1: C46500 1-1/4-2: AISI 304 |
| 14 | Seat | PTFE |
| 15 | Bonnet | C37700 |
