PRVLF Pressure Relief Valve

• Lead Free Cast Brass
• Set to 75 PSI

PRV0303LF - 1/2" X 1/2"
PRV0403LF - 3/4" X 1/2"

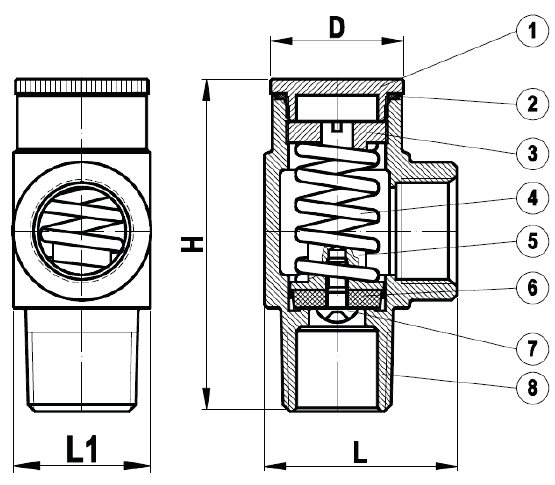

PRVLF Pressure Relief Valve - Material Specifications

No. Part Material
1 Bonnet Brass C46400
2 Washer Fibre ‘H’
3 Spring Cup Brass C46400
4 Spring Stainless Steel 304
5 Seat House Brass C46400
6 Seat Washer BUNA SN-719F
7 Seat Screw JIS H3260 C2600W
8 Body Brass C46400

Dimensions

Part  # Size H L L1 D
PRV0303LF 1/2" X 1/2" 2.48 1.42 1.02 0.99
PRV0403LF 3/4" X 1/2” 2.46 1.44 1.02 0.99
