Brass Pipe Fittings - Lead Free

• Lead Free Brass
• Material: ASTM B584, Alloy C89833
• Dimensions: ASME B16.15, B16.18
• Threads: ASME B1.20.1
• Approvals: NSF 61, 372
• Available: 1/8" through 4" Diameters

To check out our Full Line of Brass Nipples click here.

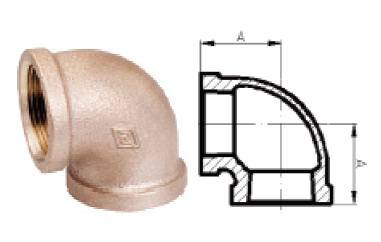

Lead Free Brass Elbow 90

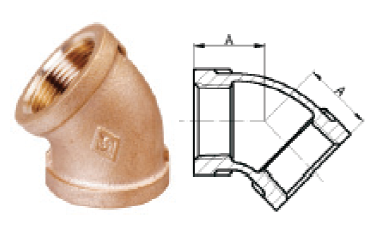

Lead Free Brass Elbow 45

Lead Free Brass Elbow 90 - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.54 0.71 0.82 1.01 1.18 1.43
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 1.69 1.84 2.12 2.70 3.08 3.79

Lead Free Brass Elbow 45 - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.42 0.56 0.63 0.78 0.89 1.06
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 1.22 1.30 1.45 1.95 2.17 2.61

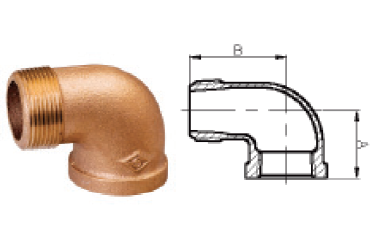

Lead Free Brass Street Elbow 90

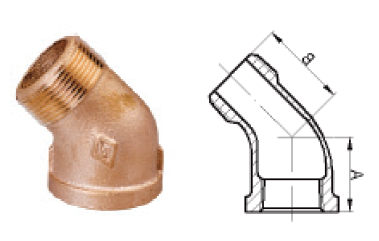

Lead Free Brass Street Elbow 45

Lead Free Brass Street Elbow 90 - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.54 0.71 0.82 1.01 1.18 1.43
B 0.92 1.11 1.24 1.48 1.65 1.98
Size 1-1/4” 1-1/2” 2” 2-1/2” 3”
A 1.69 1.84 2.12 2.72 3.08
B 2.24 2.46 2.88 3.86 4.52

Lead Free Brass Street Elbow 45 - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.42 0.56 0.63 0.78 0.89 1.06
B 0.78 0.88 0.92 1.06 1.23 1.40
Size 1-1/4” 1-1/2” 2”
A 1.22 1.30 1.45
B 1.64 1.80 2.14

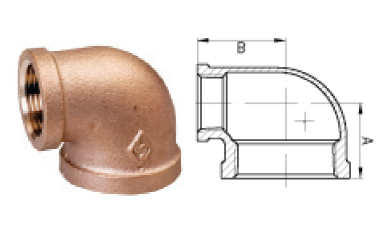

Lead Free Brass Reducing Elbow

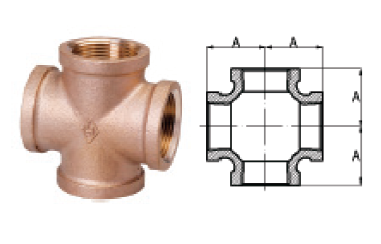

Lead Free Brass Cross

Lead Free Brass Reducing Elbow - Dimensions

Size 3/8”x1/4” 1/2”x1/4” 1/2”x3/8” 3/4”x1/8” 3/4”x1/4”
A 0.75 0.95 0.96 1.02 1.04
B 0.79 0.95 0.90 1.06 1.06
Size 3/4”x3/8” 3/4”x1/2” 1”x1/2” 1”x3/4” 1-1/4”x1/2”
A 1.12 1.08 1.20 1.30 1.34
B 1.12 1.11 1.24 1.31 1.52
Size 1-1/4”x3/4” 1-1/4”x1” 1-1/2”x1/2” 1-1/2”x3/4” 1-1/2”x1”
A 1.40 1.52 1.26 1.50 1.52
B 1.58 1.60 1.50 1.73 1.69
Size 2”x1” 2”x1-1/2” 2-1/2”x2”
A 1.71 1.89 2.39
B 2.01 2.07 2.60

Lead Free Brass Cross - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.54 0.71 0.82 1.01 1.18 1.43
Size 1-1/4” 1-1/2” 2”
A 1.69 1.84 2.12

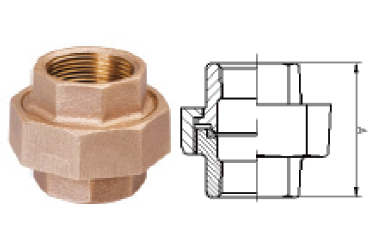

Lead Free Brass Union

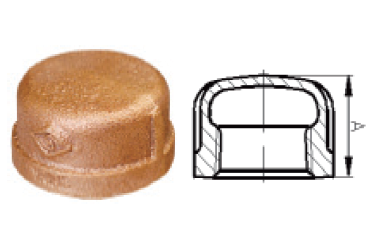

Lead Free Brass Cap

Lead Free Brass Union - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 1.26 1.46 1.62 1.73 1.95 2.07
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 2.27 2.42 2.76 3.23 3.51 3.86

Lead Free Brass Cap - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.49 0.59 0.65 0.76 0.84 0.99
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 1.10 1.15 1.32 1.70 1.80 2.08

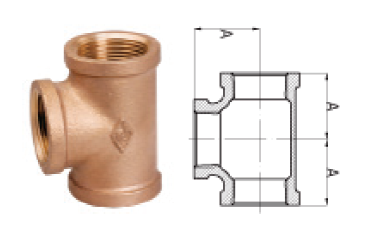

Lead Free Brass Tees

Lead Free Brass Tees - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.54 0.71 0.82 1.01 1.18 1.43
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 1.69 1.84 2.12 2.70 3.08 3.79

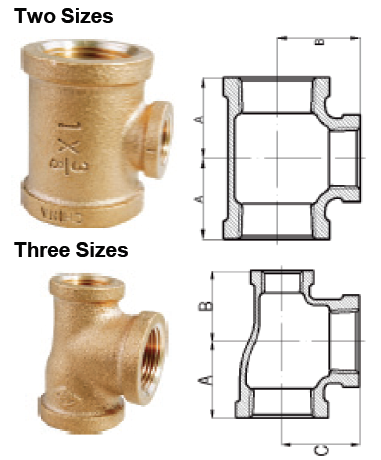

Lead Free Brass Reducing Tees

Two Sizes - Dimensions

Size 3/8”x1/4” 1/2”x1/4” 1/2”x3/8” 3/4”x1/4”
A 0.87 0.85 0.93 1.04
B 0.89 0.87 0.90 1.06
Size 3/4”x3/8” 3/4”x1/2” 1”x1/4” 1”x1/2”
A 1.08 1.08 1.02 1.20
B 1.10 1.11 1.14 1.24
Size 1”x3/4” 1-1/4”x1/2” 1-1/4”x3/4” 1-1/4”x1”
A 1.30 1.29 1.39 1.52
B 1.31 1.41 1.48 1.60
Size 1-1/2”x1/2” 1-1/2”x3/4” 1-1/2”x1” 1-1/2”x1-1/4”
A 1.32 1.42 1.55 1.72
B 1.53 1.60 1.72 1.81
Size 2”x1/2” 2”x3/4” 2”x1” 2”x1-1/4”
A 1.44 1.47 1.59 1.73
B 1.83 1.81 1.95 2.01
Size 2”x1-1/2” 2-1/2”x1-1/4” 2-1/2”x2” 3”x2”
A 1.89 2.01 2.38 2.52
B 2.07 2.44 2.60 2.89

Three Sizes - Dimensions

Size 1/2”x1/2”x3/4” 3/4”x1/2”x1/2” 3/4”x1/2”x3/4” 3/4”x3/4”x1” 1”x1/2”x1/2”
A 1.11 1.08 1.18 1.25 1.26
B 1.11 1.01 1.11 1.26 1.40
C 1.08 1.11 1.18 1.28 1.10
Size 1”x1/2”x3/4” 1”x1/2”x1” 1”x3/4”x3/4” 1”x3/4”x1” 1-1/4”x1/2”x1-1/4”
A 1.36 1.43 1.30 1.43 1.64
B 1.44 1.24 1.18 1.31 1.64
C 1.24 1.43 1.31 1.43 1.36
Size 1-1/4”x3/4”x1-1/4” 1-1/4”x1”x1-1/4” 1-1/2”x1/2”x1-1/2” 1-1/2”x1-1/4”x1-1/4”
A 1.64 1.64 1.93 1.66
B 1.64 1.64 1.93 1.76
C 1.44 1.52 1.65 1.64

Lead Free Brass Couplings

Lead Free Brass Couplings - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.80 0.97 1.05 1.29 1.43 1.68
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 1.86 1.92 2.20 2.88 3.18 3.69

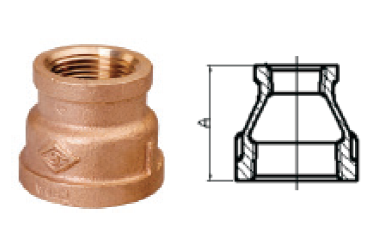

Lead Free Brass Ruducing Couplings

Lead Free Brass Reducing Couplings - Dimensions

Size 1/4”x1/8” 3/8”x1/8” 3/8”x1/4” 1/2”x1/8”
A 0.88 1.01 1.01 1.13
Size 1/2”x1/4” 1/2”x3/8” 3/4”x1/4” 3/4”x3/8”
A 1.13 1.17 1.24 1.24
Size 3/4”x1/2” 1”x3/8” 1”x1/2” 1”x3/4”
A 1.36 1.49 1.49 1.56
Size 1-1/4”x1/2” 1-1/4”x3/4” 1-1/4”x1” 1-1/2”x1/2”
A 1.65 1.65 1.77 1.80
Size 1-1/2”x3/4” 1-1/2”x1” 1-1/2”x1-1/4” 2”x1/2”
A 1.80 1.80 1.89 2.03
Size 2”x3/4” 2”x1” 2”x1-1/4” 2”x1-1/2”
A 2.03 2.03 2.03 2.06
Size 2-1/2”x1” 2”x1-1/2” 2-1/2”x1-1/4” 2-1/2”x1-1/2”
A 3.25 2.06 3.25 3.25
Size 2-1/2”x2” 3”x2” 3”x2” 3”x2-1/2”
A 3.25 3.69 3.69 3.66
Size 4” x2” 4”x3”
A 4.29 4.37

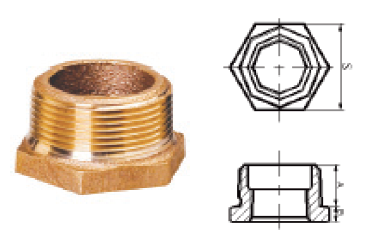

Lead Free Brass Bushings

Lead Free Brass Bushings - Dimensions

Size 1/4”x1/8” 3/8”x1/8” 3/8”x1/4” 1/2”x1/8”
A 0.44 0.48 0.48 0.56
B 0.14 0.16 0.16 0.19
C 0.64 0.68 0.68 0.87
Size 1/2”x1/4” 1/2”x3/8” 3/4”x1/8” 3/4”x1/4”
A 0.56 0.56 0.63 0.63
B 0.19 0.19 0.22 0.22
C 0.87 0.87 1.15 1.15
Size 3/4”x3/8” 3/4”x1/2” 1”x1/4” 1”x3/8”
A 0.63 0.63 0.75 0.75
B 0.22 0.22 0.30 0.30
C 1.15 1.15 1.12 1.12
Size 1”x1/2” 1”x3/4” 1-1/4”x1/2” 1-1/4”x3/4”
A 0.75 0.75 0.80 0.80
B 0.25 0.25 0.34 0.28
C 1.42 1.42 1.34 1.76
Size 1-1/4”x1” 1-1/2”x1/4” 1-1/2”x3/8” 1-1/2”x1/2”
A 0.80 0.83 0.84 0.83
B 0.28 0.37 0.35 0.37
C 1.76 1.16 1.14 1.34
Size 1-1/2”x3/4” 1-1/2”x1” 1-1/2”x1-1/4” 2”x1/2”
A 0.83 0.83 0.83 0.88
B 0.37 0.31 0.31 0.41
C 1.62 2.00 2.00 1.34
Size 2”x3/4” 2”x1” 2”x1-1/4” 2”x1-1/2”
A 0.88 0.88 0.88 0.88
B 0.41 0.41 0.34 0.34
C 1.63 1.95 2.48 2.48
Size 2-1/2”x1” 2-1/2”x1-1/4” 2-1/2”x1-1/2” 2-1/2”x2”
A 1.07 1.07 1.07 1.07
B 0.44 0.45 0.44 0.37
C 1.95 2.42 2.68 2.98
Size 3”x1-1/2” 3”x2” 3”x2-1/2” 4” x2”
A 1.14 1.13 1.13 1.22
B 0.49 0.48 0.40 0.60
C 2.72 3.28 3.86 3.28
Size 4”x2-1/2” 4”x3”
A 1.24 1.22
B 0.61 0.51
C 3.90 4.63

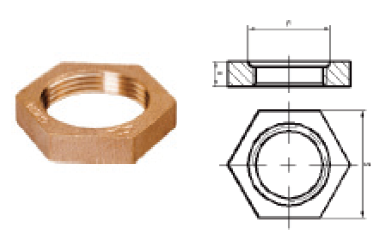

Lead Free Brass Locknut

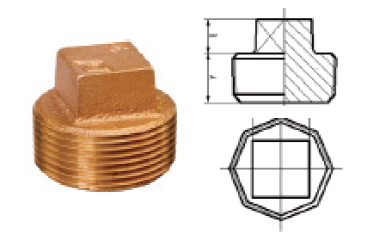

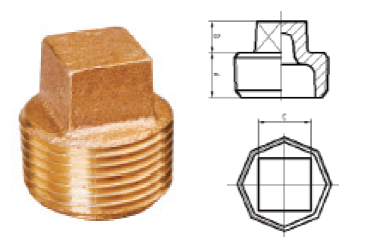

Lead Free Brass Plug

Lead Free Brass Locknut - Dimensions

Size 3/8” 1/2” 3/4” 1” 1-1/4” 2”
A 0.19 0.25 0.28 0.31 0.34 0.38
F 0.50 0.66 0.77 0.97 1.23 1.50
S 0.69 0.84 1.00 1.18 1.43 1.75

Lead Free Brass Plug - Dimensions

Size 1/8” 1/4” 3/8” 1/2” 3/4” 1”
A 0.27 0.41 0.41 0.54 0.55 0.69
B 0.24 0.28 0.31 0.38 0.44 0.50
C 0.28 0.37 0.43 0.56 0.62 0.81
Size 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
A 0.71 0.73 0.76 1.07 1.13 1.22S
B 0.56 0.62 0.68 0.74 0.80 0.92
C 0.94 1.12 1.31 1.50 1.69 2.25

Lead Free Brass Plug (Solid)

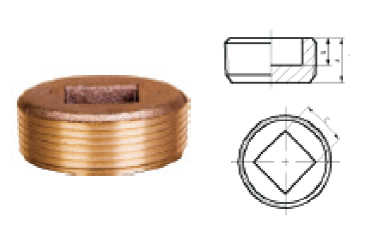

Lead Free Brass Countersunk Plug

Lead Free Brass Plug (Solid) - Dimensions

Size 1/2” 3/4” 1” 1-1/4” 1-1/2” 2”
A 0.54 0.55 0.69 0.71 0.73 0.76
B 0.38 0.44 0.50 0.56 0.62 0.68
C 0.56 0.62 0.81 0.94 1.12 1.31

Lead Free Brass Countersunk Plug - Dimensions

Size 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 3”
A 0.54 0.55 0.69 0.73 0.76 1.13 1.13
B 0.38 0.44 0.50 0.62 0.68 0.80 0.80
C 0.37 0.50 0.50 0.75 0.87 1.38 1.38
