IBMALF Lead Free Male Brass Insert Adapter

Downloads:

IBMALF Lead Free Male Brass Insert Adapter

• Lead Free Brass
• Insert x Male Adapter
• Standard for Polyethylene Pipe
• Sizes 1/2" - 2"

IBMALF Lead Free Male Brass Insert Adapter - Material Specifications

Part Material
Body Brass C46400

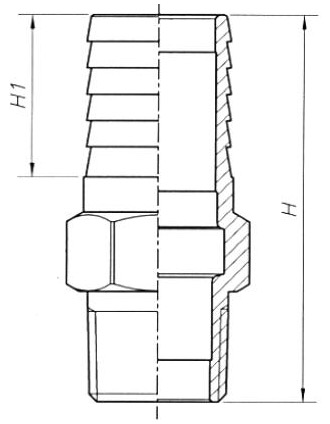

Dimensions

Part Size Size Insert Barb H H1
IBMA03LF 1/2” MIP 1/2” 6 2.36 1.41
IBMA04LF 3/4” MIP 3/4” 6 2.44 1.41
IBMA05LF 1” MIP 1” 8 3.45 1.77
IBMA0504LF 3/4" MIP 1" 6 3.12 1.41
IBMA0506LF 1-1/4” MIP 1” 7 3.35 1.60
IBMA06LF 1-1/4” MIP 1-1/4” 6 2.76 1.41
IBMA0604LF 3/4” MIP 1-1/4” 7 3.03 1.60
IBMA0605LF 1” MIP 1-1/4” 7 3.27 1.60
IBMA07LF 1-1/2” MIP 1-1/2” 8 3.07 1.80
IBMA08LF 2” MIP 2” 8 3.17 1.80
