IBILLF / IBLRLF Lead Free Brass Insert Elbow

IBILLF / IBLRLF Lead Free Brass Insert Elbow

• Lead Free Brass
• Insert x Insert Adapter
• Rating Pressure 150 PSI
• Sizes 3/4” – 1-1/4”

IBILLF Lead Free Brass Insert Elbow - Material Specification

Part Material
Body Brass C46400

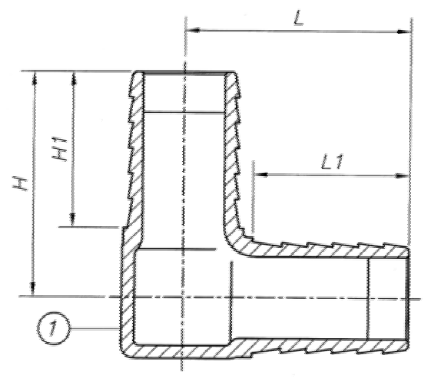

Dimensions

Part Size Barb L L1 H H1
IBIL04LF 3/4” 5 1.75 1.21 1.75 1.21
IBIL05LF 1” 5 1.99 1.21 1.99 1.21
IBIL06LF 1-1/4” 6 2.43 1.21 2.43 1.21
IBLR0705LF 1-1/2" x 1" 6 2.29 1.41 2.46 1.41
