HS-600ORB Slide Bar Shower System

Faucet Catalog

HS-600ORB Slide Bar Shower System

  • 3 Setting Handheld Spray Head
  • 24" Metal Slide Bar
  • 72" Flexible Stainless Steel Hose
  • Comes with Solid Brass Wall Mount Drop Elbow
  • Oil Rubbed Bronze

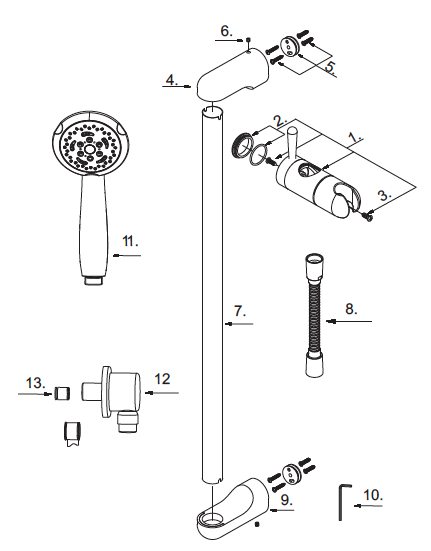

Slide Bar Shower System - Material Specifications

No. Name Part No.
1 Bracket Assembly A603982
2 Handle Cap A663453
3 Screw (3/16" -24 * 7/16" L) A008183
4 Brass Slide Bar Mount A112046
5 Holding Hardware A603524
6 Screw (M5 * 5 mm L) A008003
7 Slide Bar A025016
8 Shower Hose (72" L) A105016
9 Brass Slide Bar Mount A112047
10 Hex Wrench (H 2.5 * 19 mm L * 53 mm L) A031000NI
11 Hand Shower S2234G12
12 Brass Drop Ell A558988
13 Check Valve A519000N
