FY-925 - Pop Up, With Chain & Stopper
Downloads:
FY-925 - Pop Up, With Chain & Stopper
• Cast Brass - Chrome Plated
• Two Piece P.O. Plug
• With Chain & Stopper
• Cast Top With 4" Tailpiece
• Chrome Brass Nut

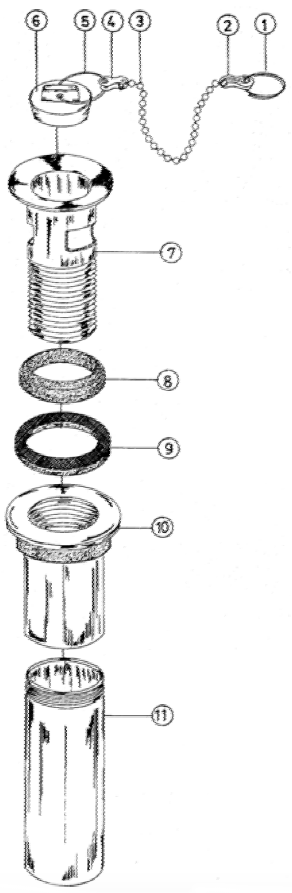

FY-925 - Pop Up, With Chain & Stopper - Material Specifications
| No. | Part | Material | |
|---|---|---|---|
| 1 | Hanger Ring | Hot Rolled SAE 1010R | |
| 2 | Joint Clamb | Zinc Z30A | |
| 3 | Joint Accessories | Zinc Z30A | |
| 4 | Joint Clamb | Zinc Z30A | |
| 5 | C Ring | Hot Rolled SAE 1010R | |
| 6 | Plug | Rubber (NBR) SN-919F (2) | |
| 7 | Flange | Brass B584 C85710 | |
| 8 | Packing | Rubber (NBR) SN-919F (2) | |
| 9 | Gasket | Fibre “H” | |
| 10 | Nut | Brass B584 C85710 | |
| 11 | Pipe | Brass (Copper Alloy Nos. C27000) | |
