FY-695 Hose Bibb- Chrome Plated, Hose End Outlet, MIP Inlet

Downloads:

Valve Catalog

FY-695 Hose Bibb- Chrome Plated, Hose End Outlet, MIP Inlet

• Chrome Plated Hose Bibb
• 3/4" Hose End Outlet
• 3/4" MIP Inlet

Click Here For Lead Free

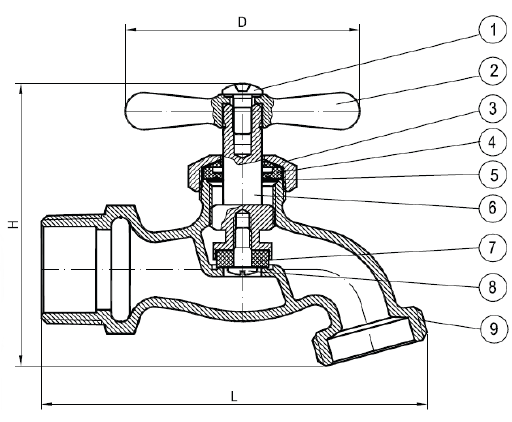

FY-695 Hose Bibb - Material Specifications

No. Part Material
1 Bolt Carbon Steel JIS G3507
2 Handle Zinc Z30A 99,90-99-95%
3 Bonnet Brass B124 C37700
4 Packing NBR
5 Washer Stainless Steel 304
6 Stem Brass B124 C37700
7 Seat Packing NBR
8 Seat Screw Brass C2600W
9 Body Brass B58 C85710

Dimensions

Part # Size H L L1 D
FY-695 3/4” Male X 3/4” Hose 2.64 3.61 1.13 2.19+
