FY-690LF Lead Free Hose Bibb- Chrome Plated, Hose End Outlet, MIP Inlet
FY-690LF Lead Free Hose Bibb- Chrome Plated, Hose End Outlet, MIP Inlet
• Chrome Plated Lead Free Brass Hose Bibb
• 3/4" Hose End Outlet
• 1/2" MIP Inlet

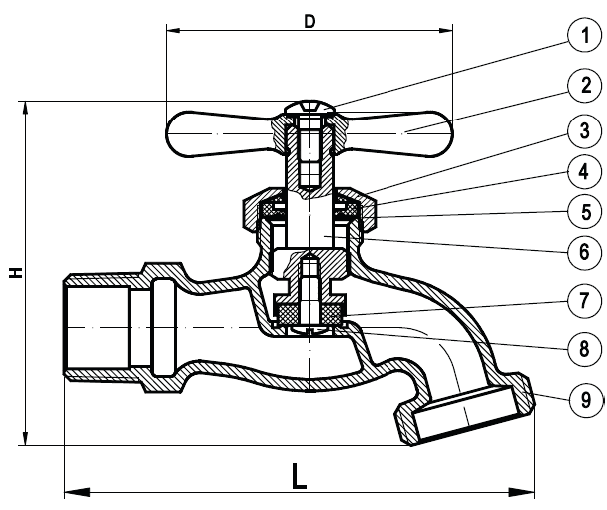

FY-690LF Lead Free Hose Bibb - Chrome Plated, Hose End Outlet, MIP Inlet - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Bolt | JIS G3507-1 | |||||
| 2 | Handle | Zinc Z30A | |||||
| 3 | Bonnet | Brass B124 C37700 | |||||
| 4 | Packing | Buna SN-719F | |||||
| 5 | Washer | Stainless Steel 304 | |||||
| 6 | Stem | Brass C 46400 | |||||
| 7 | Seat Packing | Buna SN-719F | |||||
| 8 | Seat Screw | JIS H3260 - C2600W | |||||
| 9 | Body | Brass C 46400 | |||||

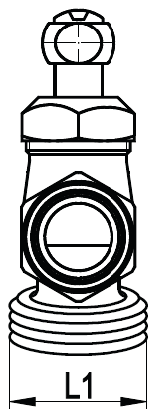

Dimensions
| Part # | Size | H | L | L1 | D | ||
|---|---|---|---|---|---|---|---|
| FY-690LF | 1/2” | 2.64 | 3.61 | 1.06 | 2.19 | ||
