FY-681 Hose Bibb- Chrome Plated, Plain End Adj. Flange

Downloads:

Valve Catalog

FY-681 Hose Bibb- Chrome Plated, Plain End Adj. Flange

• Chrome Plated Hose Bibb
• Plain End outlet
• 1/2" MIP Inlet
• Chrome Plated Adjustable Flange

Click Here For Lead Free

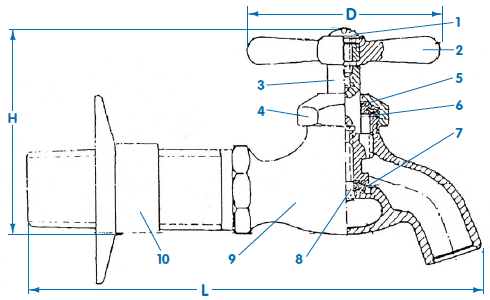

FY-681 Hose Bibb - Material Specifications

No. Part Material
1 Bolt Iron
2 Handle Zinc
3 Stem Brass
4 Packing Nut Brass
5 Packing Rubber
6 Washer Stainless Steel
7 Seat Washer Rubber
8 Seat Screw Brass
9 Body Brass
10 Range Brass

Dimensions

Part # Size H D L
FY-681 1/2" MIP 2.29 2.21 4.69
