FY-159WC - Grid Drain Assembly, Offset Wheelchair Drain

FY-159WC - Grid Drain Assembly, Offset Wheelchair Drain

• Cast Brass Grid Drain Assembly
• Chrome Plated
• Offset Wheelchair Drain
• 17 Gauge Tubing

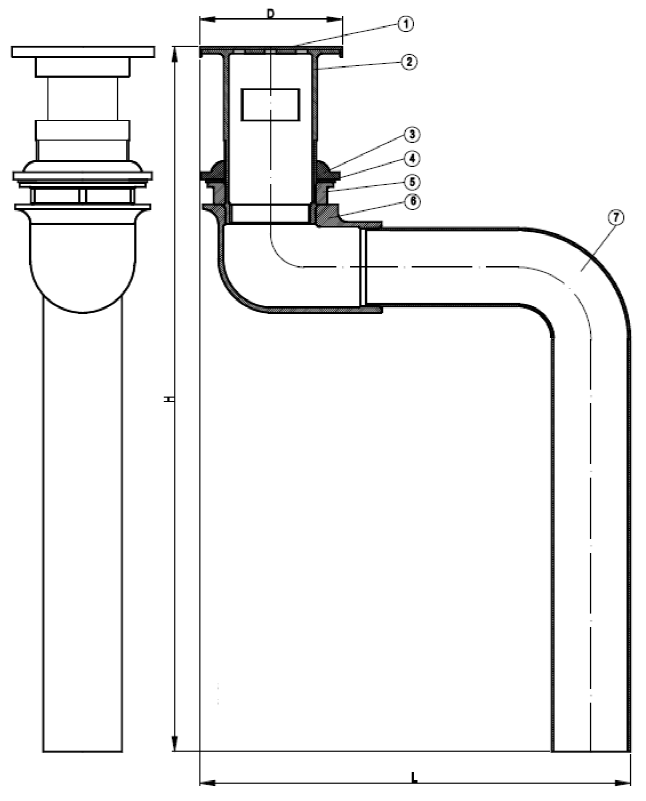

FY-159WC - Grid Drain Assembly, Offset Wheelchair Drain - Material Specifications

No. Part Material
1 Cap Plastic
2 Body 1 Brass B584 C85700
3 Packing SN-719F
4 Packing Fibre ‘H’
5 Lock Nut Brass B584 C85700
6 Body 2 Brass B584 C85700
7 Drain Pipe Brass C27000

Dimensions

Part # H L D
FY-159WC 11.14 6.80 2.25
