FY-155 & FY-156 - Grid Drain Assembly, With Tailpiece & Nut
Downloads:
FY-155 & FY-156 - Grid Drain Assembly, With Tailpiece & Nut
• Cast Brass Grid Drain Assembly
• Chrome Plated
• 17 Gauge Tailpiece
• Brass Nut
• 4" and 6" Available

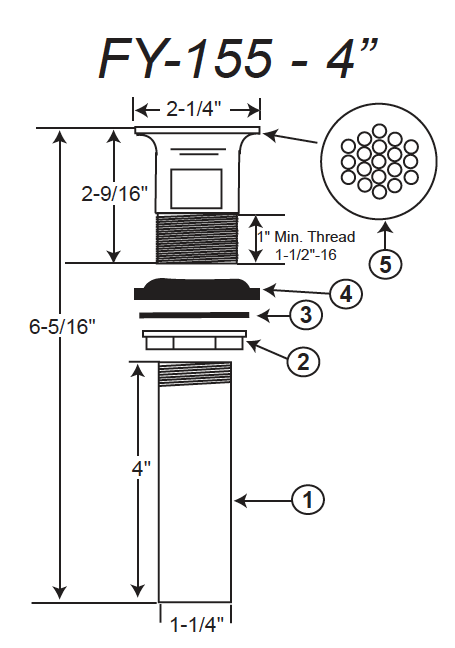

FY-155 - 4"
FY-156 - 6"
FY-155 & FY-156 - Grid Drain Assembly, With Tailpiece & Nut - Material Specifications
No. | Parts | Materials |
---|---|---|
1 | Tail Piece | 17 Gauge Chrome Plated Brass |
2 | Lock Nut | Brass |
3 | Friction Washer | Fiber |
4 | Washer | Rubber |
5 | 19 Hole - 7/32" Grid | Heavy Duty Polished Chrome Cast Brass |
![](/userAssets/image/Screen%20Shot%202015-11-18%20at%2011_30_46%20AM.png)
![](/userAssets/image/Screen%20Shot%202015-11-18%20at%2011_30_58%20AM.png)
