CK-KEY-HAV Coin Air Radiator Valve
CK-KEY-HAV Coin Air Radiator Valve
• Coin Key Air Valves
• Auto Vent
• Nickel Plated
• Automatic or Manual Operation
• Keys Available Separately
• Size 1/8" MIP
Styles: HAV-125 Auto Vent HW & Steam | CK-100 Coin Key Air Valve

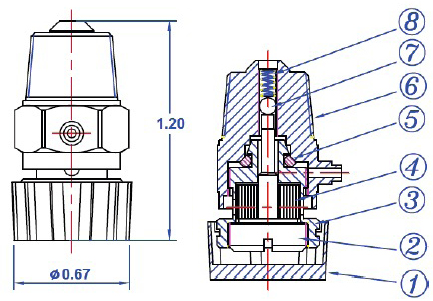

Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Handwheel | Heat Resistance ABS Plastic | ||||||
| 2 | Disc Bearing Cover | Brass B16 C36000 | ||||||
| 3 | Disc Holder | Brass B16 C36000 | ||||||
| 4 | Disc | Cellulose Fiber | ||||||
| 5 | O-Ring | Neoprene | ||||||
| 6 | Body | Brass B16 C36000 | ||||||
| 7 | Check Ball | Steel SS304 | ||||||
| 8 | Spring | Steel SS304 | ||||||
Dimensions
| Part # | Size | Inner | Master | Weight Lbs. |
|---|---|---|---|---|
| HAV-125 | 1/8” | 50 | 500 | 0.053 |

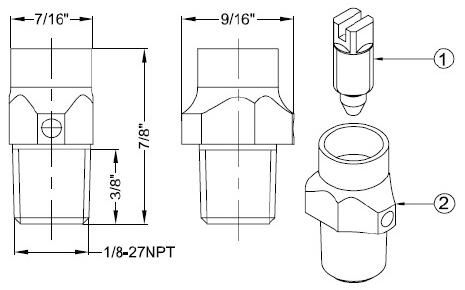

Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Adjustable Stem | Brass |
| 2 | Air Vent | Brass |
