BSGV Steam Radiator Gate Valve - Bronze, Heavy Pattern
BSGV Steam Radiator Gate Valve - Bronze, Heavy Pattern
• Radiator Gate Valve
• Bronze Body
• 125 WSP-200 WOG
• FIP x Male Union
• Sizes 1/2" - 1-1/2"

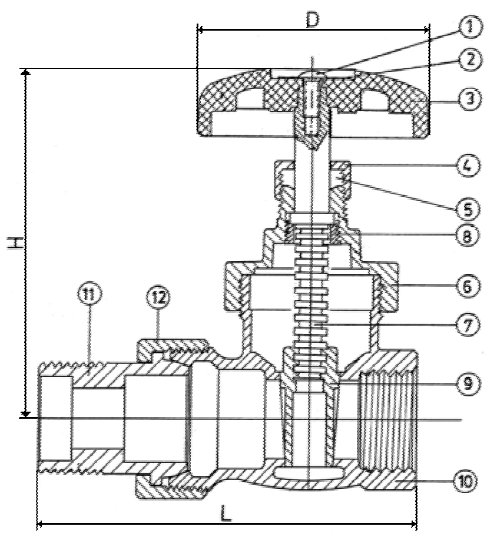

BSGV Steam Radiator Gate Valve - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Steel | |||||
| 2 | Name Plate | Aluminum A1100 | |||||
| 3 | Handwheel | Phenolic | |||||
| 4 | Packing Nut | Brass C16 C36000 | |||||
| 5 | Packing | PTFE | |||||
| 6 | Bonnet | Bronze B584 C84400 | |||||
| 7 | Stem | Brass C16 C36000 | |||||
| 8 | Lock Nut | Brass C16 C36000 | |||||
| 9 | Disc | Bronze B584 C84400 | |||||
| 10 | Body | Bronze B584 C84400 | |||||
| 11 | Nipple | Bronze B584 C84400 | |||||
| 12 | Nipple Nut | Bronze B584 C84400 | |||||
Dimensions
| Part # | Size | L | H | D | ||||
|---|---|---|---|---|---|---|---|---|
| BSGV-0500 | 1/2" | 3.01 | 2.99 | 2.30 | ||||
| BSGV-0750 | 3/4” | 3.53 | 3.59 | 2.30 | ||||
| BSGV-1000 | 1” | 3.98 | 4.04 | 2.30 | ||||
| BSGV-1250 | 1-1/4” | 4.45 | 4.77 | 2.30 | ||||
| BSGV-1500 | 1-1/2” | 4.85 | 5.50 | 2.30 | ||||
