AZ212PXCELF Lead Free Aztec Cold Expansion PEX Frost Free Sillcock - Anti-Siphon
AZ212PXCELF Lead Free Aztec Cold Expansion PEX Frost Free Sillcock - Anti-Siphon
• Lead Free Frost Free Sillcock-Anti-Siphon
• Graphite Packing
• With Self Draining Vacuum Breaker
• NSF-61 & NSF 372 Approved
• Compliance with cUPC, ASSE 1019-2011,
ASSME A112.1.1-2018/CSA B125.1-2018
• Temperature Rating Max. 160°F
• Pressure Rating Max. 125°F
• Hose x 1/2” PEX F1960
• Sizes 4” - 12”

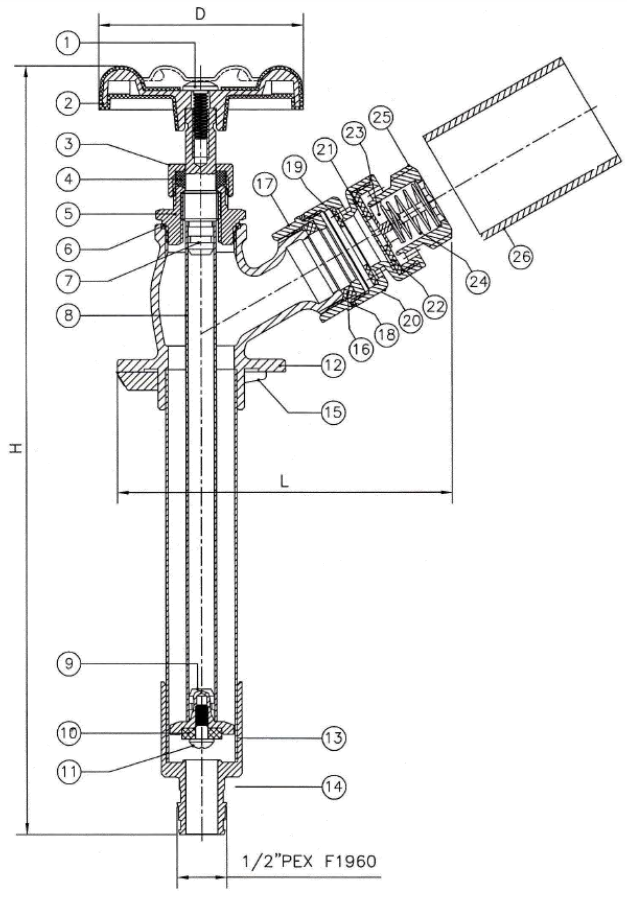

Dimensions
| Part # | Size | D | H Closed | H Open | L |
|---|---|---|---|---|---|
| AZ212004PXCELF | 4” | 2.52 | 9.26 | 9.50 | 4.14 |
| AZ212006PXCELF | 6” | 2.52 | 11.26 | 11.52 | 4.14 |
| AZ212008PXCELF | 8” | 2.52 | 13.27 | 13.53 | 4.14 |
| AZ212010PXCELF | 10” | 2.52 | 15.28 | 15.54 | 4.14 |
| AZ212012PXCELF | 12” | 2.52 | 17.29 | 17.55 | 4.14 |
Material Specifications
| No. | Name | Part No. |
|---|---|---|
| 1 | Bolt |
Stainless Steel 304
|
| 2 | Handle | Aluminum Rubber Coated |
| 3 | Packing Nut | Brass C37700 |
| 4 | Packing | Graphite |
| 5 | Bonnet |
Brass C46400
|
| 6,15,18 | Packing | POM M90 |
| 7 | Stem | Brass C46400 |
| 8 | Stem Pipe | Copper C12200 |
| 9 | Seat Holder | Brass C46400 |
| 10 | Seat Packing | Rubber (NBR) SN-719F |
| 11 | Screw | Stainless Steel 304 |
| 12 | Body |
Cast Bronze C89844
|
| 13 | Pipe |
Copper C12200
|
| 14 | Nipple |
Brass C46400
|
| 16, 19, 22 | Packing | Rubber (NBR) SN-719F |
| 17 | Hose Bonnet | Brass C46400 |
| 20 | Middle Body | Brass C46400 |
| 21 | Washer | Forged Brass C26000 |
| 23 | Spring Seat | POM M90 |
| 24 | Spring | Stainless Steel 304 |
| 25 | Hose Body | Brass C46400 |
| 26 | Safety Plug | Paper Carton |
