772 PVC Ball Valve - True Union - Solvent or Threaded
772 PVC Ball Valve - True Union - Solvent or Threaded
• Full Port Ball
• True Union
• 150 PSI @ 73 Deg. F.
• Gray Color
• Sch. 80 PVC Body
• PTFE Seat Seals
• EPDM "O" Ring
• Specify Either Solvent or Threaded Ends
• Unique Double Union / Double Block Design
• External Adjustment for Seat Wear
• Sizes 3" & 4"

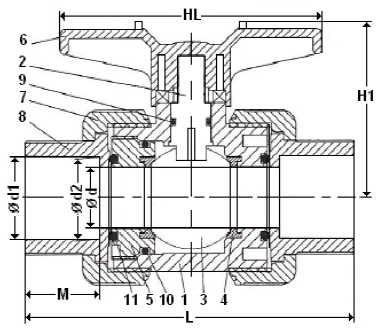

Material Specifications
| No | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Body | PVC | |||||
| 2 | Stem | PVC | |||||
| 3 | Ball | PVC | |||||
| 4 | Seat | Santoprene | |||||
| 5 | Threaded Spacer | PVS | |||||
| 6 | Handle | ABS | |||||
| 7 | Union Nut | PVC | |||||
| 8 | Union End | PVC | |||||
| 9 | Stem O-Ring | EPDM | |||||
| 10 | Spacer Seal | EPDM | |||||
| 11 | End Seal | EPDM | |||||
Dimensions
| Solvent Part # | Threaded Part # | Size | L | Ød | Ød1 | Ød2 | M | H1 | HL | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Solvent | Threaded | Solvent | Threaded | ||||||||||||
| 772S10 | 772T10 | 3” | 11.06 | 9.45 | 3.07 | 7.25 | 3.50 | 3.00 | 1.88 | 6.50 | 9.06 | ||||
| 772S11 | 772T11 | 4” | 14.25 | 14.25 | 3.35 | 7.84 | 4.50 | 4.00 | 2.25 | 6.77 | 10.79 | ||||
