771 CPVC Ball Valve - PTFE Seats

Valve Catalog

771 CPVC Ball Valve - PTFE Seats

• ISO-9002
• CPVC
• 100 PSI @ 180 Deg. F.
• NSF Approved
• CTS I.D.
• White Color
• PTFE Seat Seals
• EPDM "O" Ring
• Solvent Ends Comply with ASTM D2846
• Sizes 1/2" - 2"

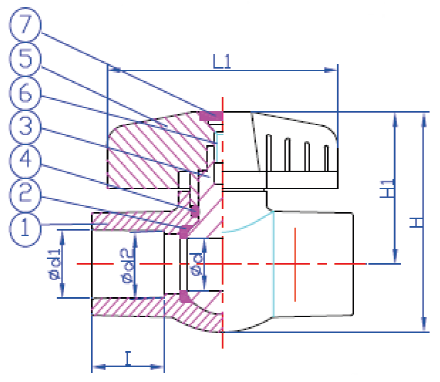

Material Specifications

No. Part Material
1 Body CPVC
2 Seat Seal PTFE
3 Ball CPVC
4 O-Ring EPDM
5 Handle ABS
6 Bolt Zinc- Plated Steel
7 Cap ABS

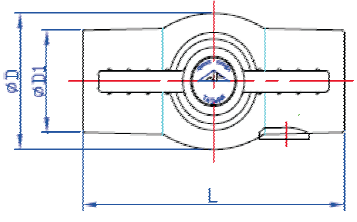

Dimensions

Part # Size D D1 d d1 d2 L L1 H H1 I
771S03 1/2" 1.26 0.95 0.49 0.63 0.62 2.68 2.36 2.05 1.42 0.75
771S04 3/4" 1.58 1.18 0.72 0.88 0.87 3.27 2.76 2.56 1.77 0.87
771S05 1" 2.05 1.50 0.93 1.14 1.12 3.78 3.47 3.23 2.21 1.00
771S06 1-1/4" 2.25 1.77 0.99 1.39 1.37 4.18 3.94 3.66 2.56 1.11
771S07 1-1/2" 2.48 2.13 1.18 1.64 1.63 4.49 3.94 3.86 2.64 1.26
771S08 2" 3.11 2.60 1.42 2.14 2.12 5.69 4.29 4.53 3.07 1.69
