759PLF Lead Free Press Ball Valve - Full Port, Forged Brass, UPC & NSF Certified
759PLF Lead Free Press Ball Valve - Full Port, Forged Brass, UPC & NSF Certified
• Lead Free Forged Brass
• 250 PSI (CWP)
• Max Temp. Rating: 250 F
• Full Port
• One O-Ring
• PTFE Seats
• Blow Out Proof Stem
• Leak Prior to Press
• Press Conforms to IAPMO PS117
• cUPC, NSF/ANSI 61 & NSF/ANSI 372 Approved
• With Waste Drain Available (1/2" - 1")
• Sizes 1/2" - 4"

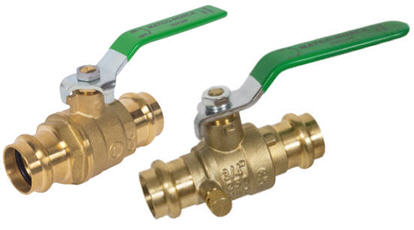

759PLF Press Brass Ball Valve | 759PDLF Press Brass Ball Valve With Waste Drain
1/2" - 2"
2-1/2" - 4"
.png)

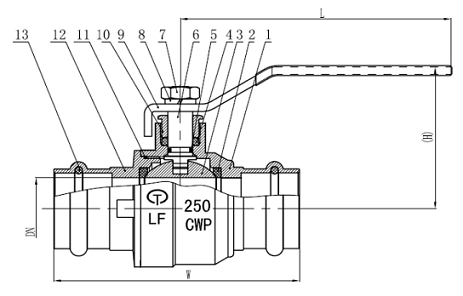

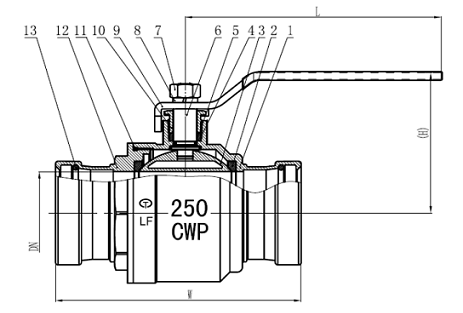

DIMENSIONS
| Part # | Size | DN | W | L | H |
|---|---|---|---|---|---|
| 759P03LF | 1/2” | 0.59 | 3.19 | 3.47 | 1.81 |
| 759P04LF | 3/4” | 0.75 | 3.61 | 4.29 | 2.10 |
| 759P05LF | 1” | 0.99 | 3.92 | 4.29 |
2.25
|
| 759P06LF | 1-1/4” | 1.26 | 4.41 | 5.63 | 2.53 |
| 759P07LF | 1-1/2” | 1.58 | 5.36 | 5.63 |
2.75
|
| 759P08LF | 2” | 1.94 | 6.50 | 6.11 | 3.04 |
| 759P09LF | 2-1/2” | 2.52 | 7.47 | 7.68 |
4.26
|
| 759P10LF | 3” | 2.90 | 8.18 | 8.20 |
4.59
|
| 759P11LF | 4” | 3.84 | 9.89 | 9.06 | 5.50 |
MATERIAL SPECIFICATIONS
| No. | Part |
Material
|
|---|---|---|
| 1 | Body | Lead Free Brass |
| 2 | Seat |
PTFE
|
| 3 | Ball | Stainless Steel |
| 4 | Packing |
PTFE
|
| 5 | O-Ring | NBR |
| 6 | Stem |
Brass 1/2” - 2”
Stainless Steel 2-1/2” - 4”
|
| 7 | Handle Nut |
Plated Steel
|
| 8 | Lock Washer |
Plated Steel
|
| 9 | Handle | Plated Steel |
| 10 | Packing Nut | Brass |
| 11 | O-Ring | NBR |
| 12 | Cap | Lead Free Brass |
| 13 | O-Ring |
EPDM
|
.png)

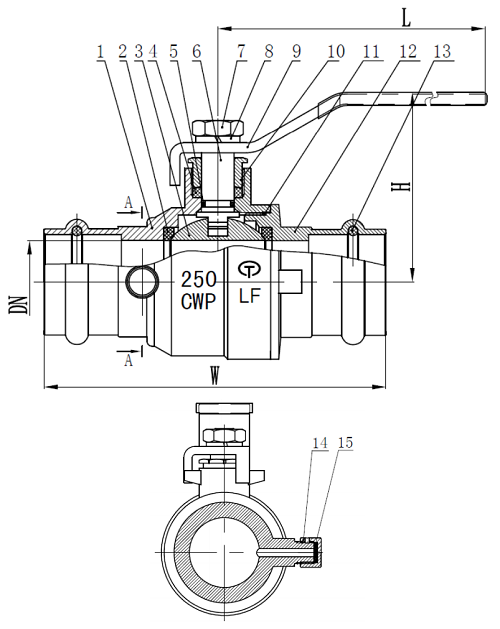

DIMENSIONS
| Part # | Size | DN | W | L | H |
|---|---|---|---|---|---|
| 759PD03LF | 1/2” | 0.59 | 3.19 | 3.47 | 1.81 |
| 759PD04LF | 3/4” | 0.75 | 3.61 | 4.29 | 2.10 |
| 759PD05LF | 1” | 0.99 | 3.92 | 4.29 |
2.25
|
MATERIAL SPECIFICATIONS
| No. | Part |
Material
|
|---|---|---|
| 1 | Body | Lead Free Brass |
| 2 | Seat |
PTFE
|
| 3 | Ball | Stainless Steel |
| 4 | Packing |
PTFE
|
| 5 | O-Ring | NBR |
| 6 | Stem |
Brass 1/2” - 2”
|
| 7 | Lock Nut |
Iron / Zinc Plated
|
| 8 | Lock Washer |
Iron / Zinc Plated
|
| 9 | Handle | Iron / Chrome Plated |
| 10 | Packing Nut | Brass |
| 11 | O-Ring | NBR |
| 12 | Cap | Lead Free Brass |
| 13 | O-Ring |
EPDM
|
| 14 | Screw |
Brass
|
| 15 | Gasket |
EPDM
|
