759 Ball Valve - Full Port, Forged Brass, CSA Certified

• 600 WOG - 150 SWP 1/4" - 2"
• 400 WOG - 150 SWP 2-1/2" - 4"
• CSA Certified 1/2" - 2"
• Full Port
• Forged Brass Body
• Blow Out Proof Stem
• PTFE Seats
• Threaded Ends Comply w/ ANSI B1.20.1
• Solder Ends Meet ANSI B16.18
• Conforms to MSS-SP-110 Specifications
• Locking Handles Available
• Standard and Stainless Steel Replacement Handles Available
• Sizes 1/4" - 4"

759T - Same as above with Tee Handle
• CxC - Sizes 3/4" - 1"
• IPS - Sizes 1/4", 1/2", 3/4"

759TS - Same as above with SS Thumb Handle
• CxC - Sizes 3/4" - 1"
• IPS - Sizes - 1/2" - 1"

APPLICATIONS
• Commercial & Light Industrial/ Steam, Water, Oil, Gas, Air

Sizes: 759 Brass Valve | 2" - 4" | 759 Brass Valve with Tee Handle | 759TS Brass Valve with Thumb Grip Handle

759 Brass Valve

IPS

CxC

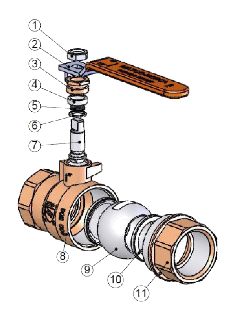

Material Specifications

No.	Part	Material
1	Hex Nut	Steel
2	Handle	Steel
3	Packing Nut	Brass
4	Packing Gland	PTFE
5	O-Ring	EPDM
6	Washer	PTFE
7	Stem	Brass C36000
8	Bonnet	Brass C37700
9	Ball	Brass
10	Seat	PTFE
11	Body	Brass C37700

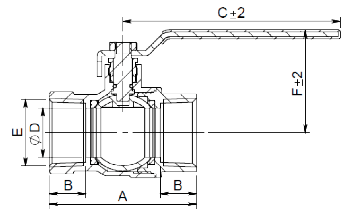

IPS Dimensions

PART #	Size	A	B	C	D	E	F
759T01	1/4”	1.73	0.45	3.07	Ø0.39	18NPT	1.44
759T02	3/8”	1.73	0.45	3.07	Ø0.39	18NPT	1.44
759T03	1/2”	2.05	0.55	3.07	Ø0.51	14NPT	1.54
759T04	3/4”	2.30	0.57	4.14	Ø0.71	14NPT	1.78
759T05	1”	2.80	0.69	4.14	Ø0.95	11.5NPT	1.96
759T06	1-1/4”	3.15	0.69	4.93	Ø1.20	11.5NPT	2.49
759T07	1-1/2”	3.51	0.71	4.93	Ø1.46	11.5NPT	2.67

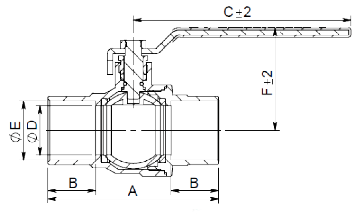

CXC Dimensions

PART #	Size	A	B	C	D	E	F
759C03	1/2”	1.97	0.49	3.07	Ø0.51	Ø0.63	1.54
759C04	3/4”	2.71	0.75	4.14	Ø0.71	Ø0.88	1.78
759C05	1”	3.25	0.91	4.14	Ø0.95	Ø1.13	1.96
759C06	1-1/4”	3.62	0.93	4.93	Ø1.20	Ø1.38	2.49
759C07	1-1/2”	4.29	1.10	4.93	Ø1.46	Ø1.63	2.67

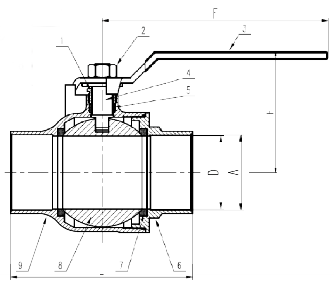

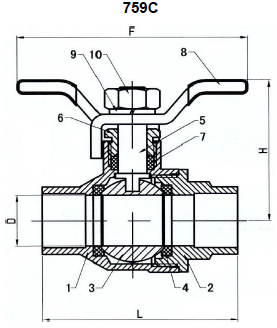

2” – 4”

Material Specifications

No.	Part	Material
1	Gland Nut	Brass
2	Hex Nut	Steel
3	Handle	Steel
4	Stem	Brass
5	Stem Packing	PTFE
6	End Cap	Brass
7	Seat	PTFE
8	Ball	C.P. Brass
9	Body	Brass

IPS Dimensions

PART #	Size	L	D	H	F
759T08	2”	4.41	Ø1.97	3.27	5.52
759T09	2-1/2”	5.99	Ø2.56	4.59	9.06
759T10	3”	6.50	Ø2.96	4.87	9.06
759T11	4”	7.76	Ø3.90	5.67	10.10

CXC Dimensions

PART #	Size	L	D	A	H	F
759C08	2”	5.34	Ø1.97	Ø2.13	3.27	5.52
759C09	2-1/2”	6.38	Ø2.56	Ø2.63	4.24	7.92
759C10	3”	7.17	Ø2.96	Ø3.13	5.04	9.89
759C11	4”	9.22	Ø3.90	Ø4.13	5.71	9.89

759 Ball Valve with Tee Handle

Material Specifications

No.	Part	Material
1	Body	Brass C37700
2	End Cap	Brass C37700
3	Ball	Brass C37700
4	Seat	PTFE
5	Stem	Brass C37700
6	Gland Nut	Brass C37700
7	Stem Packing	PTFE
8	Handle	Steel
9	Lock Washer	Brass C37700
10	Hex Nut	Brass C37700

Dimensions

Part # IPS	Size	L	H	D	F
759T01T	1/4”	1.69	1.48	0.39	2.92
759T03T	1/2”	2.07	1.62	0.59	2.92
759T04T	3/4”	2.38	1.97	0.75	3.43
759T05T	1”	2.90	2.13	0.99	3.43

Part # CxC	Size	L	H	D	F
759C03T	1/2”	2.25	1.62	0.59	2.92
759C04T	3/4”	2.82	1.97	0.75	3.43
759C05T	1”	3.31	2.13	0.99	3.43

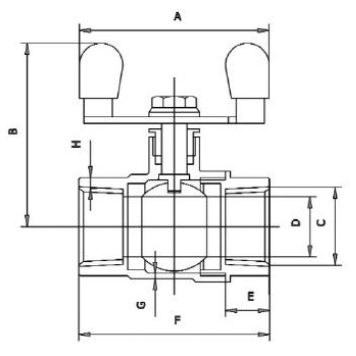

759TS Ball Valve with Thumb Grip Handle

Material Specifications

Part						Material
Nut						Stainless Steel GR316
Lock Washer						Stainless Steel GR316
Handle						Stainless Steel GR316
Packing Nut						Brass C377000
Packing						PTFE
Stem						Brass B124-C377000
Seat Ring						PTFE
Ball						C.P. Brass B124-C377000
End Cap						Forged Brass B124-C377000
Body						Forged Brass B124-C377000

Dimensions

PART # (IPS)	PART # (CxC)	Size	A	B	C	D	E	F	G	H
759T03TS	-	1/2”	2.05	1.46	0.83	0.59	0.51	2.07	0.07	0.17
759T04TS	759C04TS	3/4”	2.36	2.27	1.04	0.75	0.55	2.38	0.07	0.14
759T05TS	759C05TS	1”	2.20	2.43	1.30	0.98	0.68	2.89	0.08	0.16
