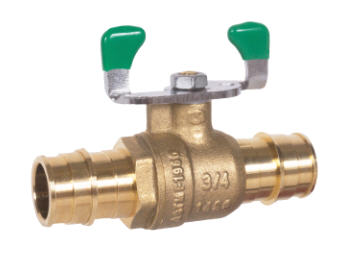

754PXCETLF Lead Free Cold Expansion F1960 PEX Ball Valve With Tee Handle - Full Port
754PXCETLF Lead Free Cold Expansion F1960 PEX Ball Valve With Tee Handle - Full Port
• Lead Free Brass
• 400 WOG
• Full Port
• NSF61 & NSF372 Approved
• cUPC Approved
• PEX Ends Conform with ASTM F1960
• With Tee Handle
• Two Piece Body
• Blow-Out Proof Stem
• Sizes 1/2"-1"

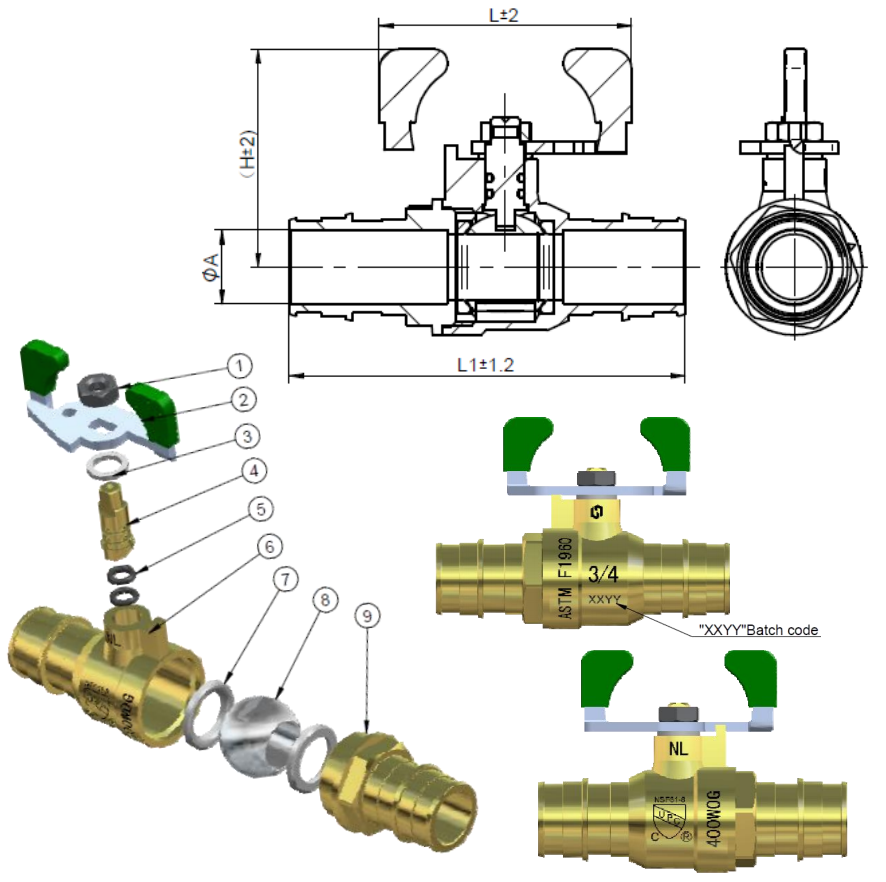

DIMENSIONS
| Part # | Size | A | L1 | L | H |
|---|---|---|---|---|---|
| 754PXCE03TLF | 1/2” | 0.38 | 2.60 | 2.05 | 1.69 |
| 754PXCE04TLF | 3/4" | 0.60 | 3.21 | 2.05 | 1.77 |
| 754PXCE05TLF | 1” | 0.81 | 3.98 | 2.52 | 2.04 |
MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Hex-Nut | Steel Q235 |
| 2 | Handle |
Steel Q235
|
| 3 | Washer | PTFE |
| 4 | Stem | Brass C46500 |
| 5 | O-Ring | EPDM |
| 6 | Body | Brass C46500 |
| 7 | Seat | PTFE |
| 8 | Ball | Brass C46500 |
| 9 | Bonnet | Brass C46500 |
