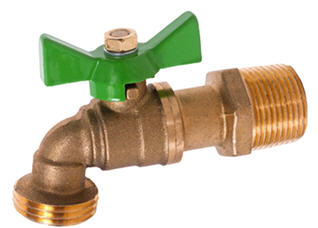

646BVLF Lead Free Hose Bibb- Forged Brass

Valve Catalog

646BVLF Lead Free Hose Bibb- Forged Brass

• Lead Free Forged Brass
• Quarter Turn
• 125 WOG
• Hose Bibb-Male
• NSF Approved
• Ball Valve Type
• Hose x MIP 1/2" and 3/4"
• 1/2" MIP x 1/2" Solder Inlet

Replacement Handles Available

Click Here For Standard

646BVLF Lead Free Hose Bibb - Forges Brass - Material Specifications

No. Part Material
1 Body Lead Free Brass
2 Seating PTFE
3 Ball Lead Free Brass
4 Bonnet Lead Free Brass
5 Stem Brass
6 O-Ring NBR
7 Handle Iron
8 Screw Iron

Dimensions

Part  # Size (F) D H L d S L1
646BV03LF 1/2” 1.93 1.58 2.01 0.63 0.91 0.59
646BV04LF 3/4” 1.93 1.58 2.19 0.75 1.08 0.91
