58LGAN Gas Ball Valve- CSA Certified, Two Piece

Downloads:

Valve Catalog

58LGAN Gas Ball Valve- CSA Certified, Two Piece

• Economy Valve
• Gas Ball Valve
• 600 WOG
• 1/2 PSIG and 5 G
• Operating Range -4°F to 149°F
• CSA & UL Approved
• Available in Lever
• Sizes - FIP x FIP 1/2" - 1"

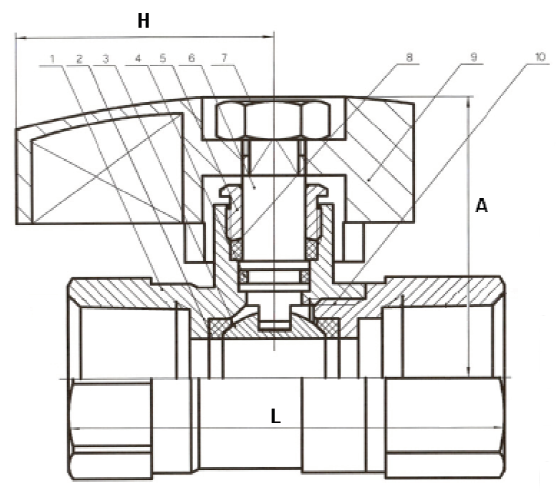

58LGAN Gas Ball Valve - CSA Certified, Two Piece - Material Specifications

No. Part Material
1 Body Brass C37700
2 Sealing Washer PTFE
3 Chrome Plated Ball Brass C3700
4 O-Ring* NBR
5 Packing Nut Brass C3700
6 Stem Brass C3700
7 Handle Nut Chrome Plated Steel
8 Ball Packing PTFE
9 Handle Aluminum Alloy
10 Cap Brass C3700

Dimensions

Part # Size L H A
58LGA3N 1/2” 2.17 1.28 1.42
58LGA4N 3/4” 2.34 1.28 1.54
58LGA5N 1” 2.88 1.28 1.69
