58LGAF Gas Ball Valve- CSA Certified, Two Piece, Fip X Flare

• ISO 9002
• Gas Ball Valve
• 1/2 PSIG and 5 G
• CSA & UL Approved
• Lever Handle
• FIP x Flare
• 1/2" FIP x 3/8" FL, 1/2" FL or 9/16" - 24 FL
• 3/4" FIP x 15/16" -24 FL

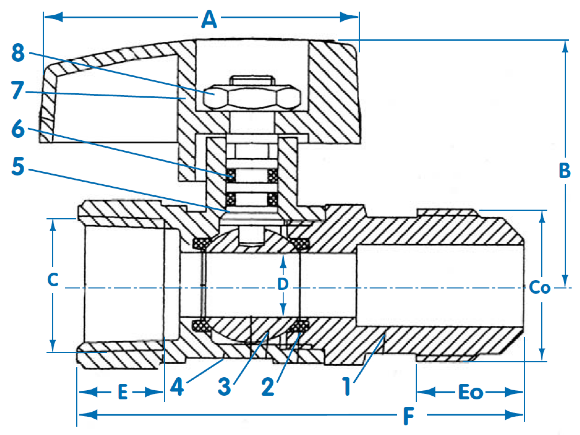

58LGAF Gas Ball Valve - CSA Certified, Two Piece, Fip X Flare - Material Specifications

No. Part Material
1 Adapter Forged Brass
2 Seats Virgin PTFE
3 Ball Chrome Plated Brass
4 Body Forged Brass
5 Stem Machined Brass
6 O Ring NBR
7 Handle Aluminum Alloy
8 Handle Nut Copper Plated/ Carbon Steel

Dimensions

Part # Size A B C x Co D E x Eo F
58LGAF32 1/2" FIP x 3/8" Flare 1.97 1.50 1/2 - 14NPT, 5/8 - 18UNF .39 14" x 12.7" 2.48
58LGAF33 1/2" FIP x 1/2" Flare 1.97 1.50 1/2" - 14NPT, 3/4" - 16UNF .39 14" x 14.4" 2.71
58LGAF39 1/2" FIP x 9/16" - 24 1.97 1.50 1/2" - 14NPT, 9/16 - 24UNEF .39 14" x 12.9" 2.48
58LGAF4 3/4" FIP x 15/16" - 24 1.97 1.61 3/4" - 14NPT, 15/16" - 16UNF .55 15" x 17" 2.99
