530LF Lead Free Bronze Check Valve
530LF Lead Free Bronze Check Valve
• Lead Free Bronze Swing Check Valve
• 300 WOG Non-Shock
• 150 WSP
• Horizontal Pattern
• Bronze Disc
• Threaded Cap
• NSF/ANSI 61 IAPMO Approved
• Threaded Ends Conform to ASME B1.20.1
• Valves Comply with MSS SP-80
• Sizes 3/8” – 2”

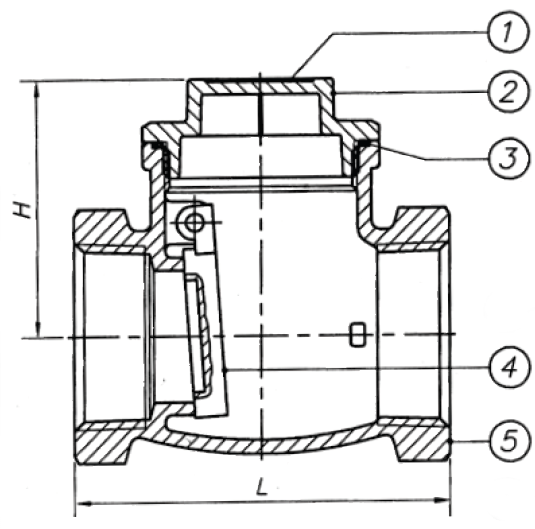

530LF Lead Free Bronze Check Valve - Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Name Plate | Aluminium A1100 | ||||
| 2 | Cap | Bronze C89844 | ||||
| 3 | Packing | Fibre “H” | ||||
| 4 | Disc | Bronze C89844 | ||||
| 5 | Body | Bronze C89844 | ||||
| 6 | Bolt | Bronze C89550 | ||||
| 7 | Pin | Brass B19 C26000 | ||||
Dimensions
| Part # | Size | H | L | ||
|---|---|---|---|---|---|
| 530T02LF | 3/8” | 1.42 | 2.09 | ||
| 530T03LF | 1/2” | 1.42 | 2.09 | ||
| 530T04LF | 3/4” | 1.56 | 2.36 | ||
| 530T05LF | 1” | 1.77 | 2.62 | ||
| 530T06LF | 1-1/4” | 2.07 | 3.19 | ||
| 530T07LF | 1-1/2” | 2.17 | 3.55 | ||
| 530T08LF | 2” | 2.74 | 4.22 | ||
