519 Brass Compression Gate Valve
519 Brass Compression Gate Valve
• Brass Gate Valve
• 200 WOG
• Full Port
• Non-rising Stems
• Compression Ends - Suitable for Use w/ Copper Tubing
• Valves are Tested in Accordance with MSS-SP-80
• 1/2" Available w/ Compression Ends & Transition Adapter
• Standard Being Discontinued. Only sizes 1/2" & 1" Available
Click here to view our lead free version with more sizes available!

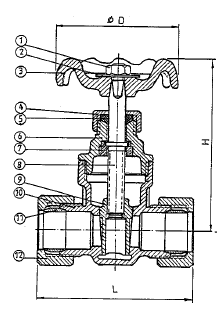

Material Specifications
| NO. | PART | MATERIAL | ASTM SPEC |
|---|---|---|---|
| 1 | Wheel Nut | Plated Steel | Commercial |
| 2 | Name Plate | Aluminum | Commercial |
| 3 | Hand Wheel | Cast Iron | Commercial |
| 4 | Packing Nut | Brass | B16 GR3600 |
| 5 | Gland Packing | Graphite | Non Asbestos |
| 6 | Bonnet | Cast Brass | B584 GRC85700 |
| 7 | Lock Nut | Brass | B16 GR3600 |
| 8 | Stem | Brass | B16 GR3600 |
| 9 | Disc | Cast Brass | B584 GRC85700 |
| 10 | Body | Cast Brass | B584 GRC85700 |
| 11 | Compression Ring | Brass Tube | B16 GR3600 |
| 12 | Compression Nut | Brass | B584 GRC85700 |
Dimensions
| PART # | SIZE (inch) | L | H | W | WT. (lbs.) |
|---|---|---|---|---|---|
| 519T03 | 1/2" | 2.62 | 2.91 | 2.00 | 0.70 |
| 519T04 | 3/4" | 2.89 | 3.22 | 2.28 | 0.94 |
| 519T05 | 1" | 3.34 | 3.89 | 2.55 | 1.36 |
