503 Bronze Gate Valve
503 Bronze Gate Valve
• Bronze Body
• 300 WOG - 150 SWP
• Full Port
• Non-rising Stem
• Threaded Bonnet
• Threaded Ends Comply with ASME B1.20.1
• Valves Comply with MSS SP-61 and MSS SP-80
• Sizes 1/2" - 4"
.png)

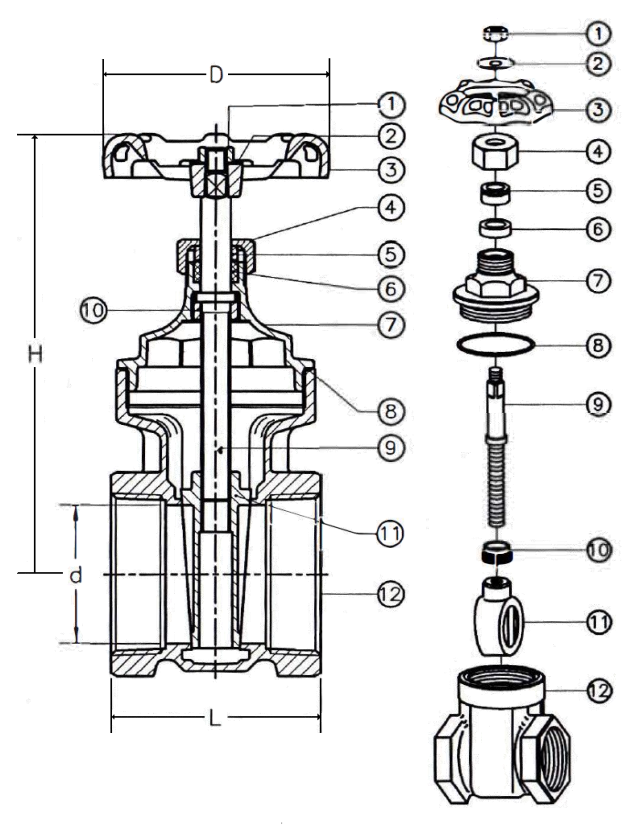

Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Nut | Forged Brass C2600 | |||||
| 2 | Name Plate | Aluminum A1100 | |||||
| 3 | Handle | Cast Iron JIS ZZ2202 | |||||
| 4 | Packing Nut | Brass Rod C3770 | |||||
| 5 | Gland Ring | Brass Rod C3770 | |||||
| 6 | Packing |
Graphite LK 33 NAFG
|
|||||
| 7 | Bonnet | Cast Bronze C83600 | |||||
| 8 | Packing | FIBRE | |||||
| 9 | Stem |
1/2”-2” Brass Rod C37700 2-1/2”-4” Cast Bronze C89844 |
|||||
| 10 | Lock Nut |
Brass Rod C37700
|
|||||
| 11 | Disc | Bronze C83600 | |||||
| 12 | Body | Bronze C83600 | |||||
Dimensions
| PART # | SIZE | d | D | H | L |
|---|---|---|---|---|---|
| 503T03 | 1/2” | 0.53 | 2.09 | 2.92 | 1.71 |
| 503T04 | 3/4” | 0.75 | 2.13 | 3.31 | 1.81 |
| 503T05 | 1” | 0.99 | 2.48 | 3.90 | 2.13 |
| 503T06 | 1-1/4” | 1.26 | 2.72 | 4.61 | 2.25 |
| 503T07 | 1-1/2” | 1.50 | 3.15 | 5.08 | 2.44 |
| 503T08 | 2” | 1.93 | 3.53 | 5.99 | 2.70 |
| 503T09 | 2-1/2” | 2.44 | 3.98 | 7.88 | 3.70 |
| 503T10 | 3” | 2.96 | 4.37 | 8.87 | 4.02 |
| 503T11 | 4” | 3.62 | 4.85 | 9.89 | 4.53 |
