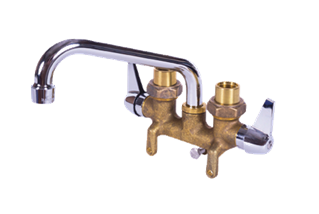

CL-380RB 4" Laundry Tray Faucet
CL-380RB 4" Laundry Tray Faucet
- 1/2" Female Thread Connections
- Rough Brass

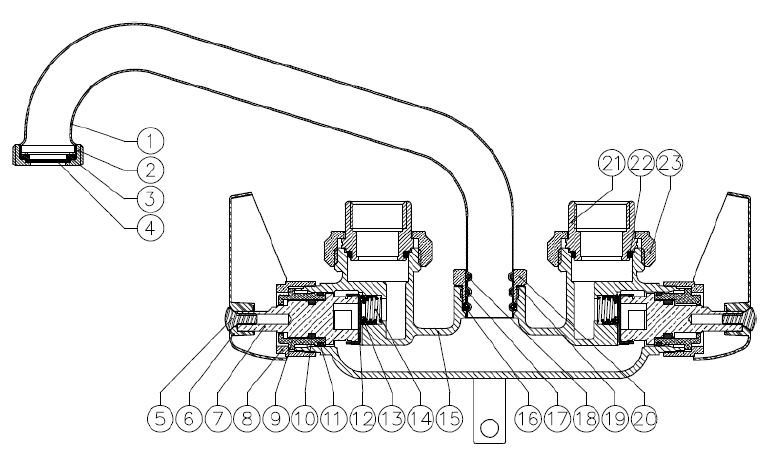

4" Laundry Tray Faucet CL-380RB - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Spout | Brass C37700 |
| 2 | Bubble Shell | Brass C37700 |
| 3 | Washer | EPDM SE-719F |
| 4 | Washer | Stainless Steel 304 |
| 5 | Screw | Stainless Steel 304 |
| 6 | Handle | Zinc |
| 7 | Stem | Brass C89550 |
| 8 | Cap | Zinc |
| 9 | Shell | Brass C89550 |
| 10 | O-Ring | BUNA SN-719F |
| 11 | O-Ring | BUNA SN-719F |
| 12 | Washer | Stainless Steel 304 |
| 13 | Washer | EPDM SE-719F |
| 14 | Spring | Stainless Steel 304 |
| 15 | Body | Brass C89550 |
| 16 | C-Type Buckle | POM |
| 17 | O-Ring | BUNA SN-719F |
| 18 | O-Ring | BUNA SN-719F |
| 19 | O-Ring | BUNA SN-719F |
| 20 | Nut | Brass C37700 |
| 21 | Connector | Brass C89550 |
| 22 | O-Ring | BUNA SN-719F |
| 23 | Nut | Brass C37700 |
