CL-386CH 4" Heavy Duty Laundry Tray Faucet
CL-386CH 4" Heavy Duty Laundry Tray Faucet
- Wing Handles
- 6" Swing Spout
- Chrome

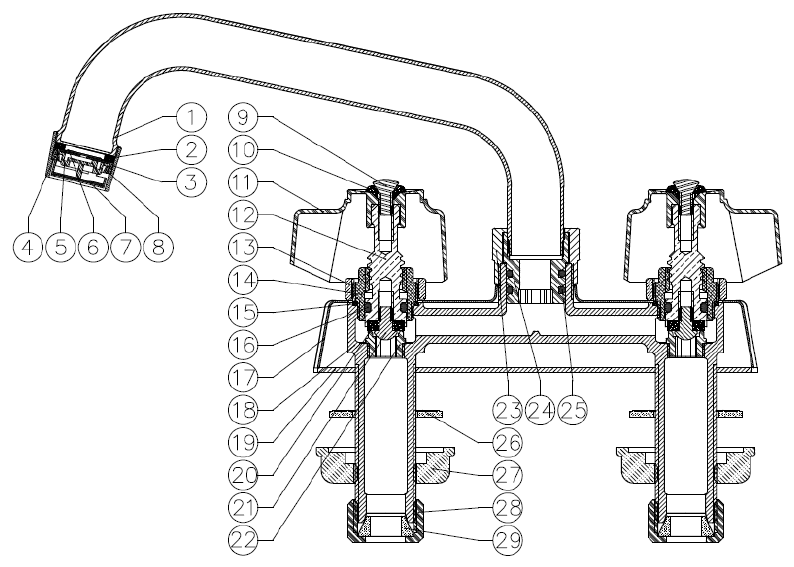

4" Heavy Duty Laundry Tray Faucet CL-386CH - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Outlet | Brass C37700 |
| 2 | Gasket | EPDM |
| 3 | Cap | Brass C37700 |
| 4 | Steel Bridge | POM |
| 5 | Cover | POM |
| 6 | Gasket | POM |
| 7 | Wire Mesh | Stainless Steel 304 |
| 8 | Plastic Sheet | POM |
| 9 | Screw | Stainless Steel 304 |
| 10 | Washer | ABS |
| 11 | Handwheel | Zinc |
| 12 | Stem | Brass C89550 |
| 13 | Cap | ABS |
| 14 | Nut | Brass C89550 |
| 15 | Gasket | Nylon |
| 16 | O-Ring | EPDM |
| 17 | Panel | Brass C37700 |
| 18 | Body | Brass C89550 |
| 19 | Panel | PP |
| 20 | Gasket | EPDM |
| 21 | Crossed Screw | Brass C89550 |
| 22 | Check Core | Brass C89550 |
| 23 | Nut | Brass C37700 |
| 24 | Connector | Brass C89550 |
| 25 | O-Ring | BUNA SN-719F |
| 26 | Gasket | EPDM |
| 27 | Nut | ABS |
| 28 | Bonnet | Brass C37700 |
| 29 | Rubber Cone | EPDM |
