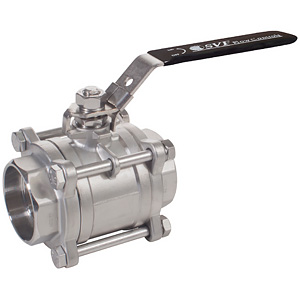

30SSSW Stainless Steel Socket Weld Ball Valve - Three Piece

30SSSW Stainless Steel Socket Weld Ball Valve - Three Piece

• Full Port
• Three Piece
• 150 lb. WSP
• W.P. 1000 WOG
• W.T. -4°F -392°F
• 316 Stainless Steel Body
• Investment Casting
• Blow-out Proof Stem
• Locking Handle
• Socket Weld Ends Conform to: ANSI B16.11
• Size 1/4” - 4”

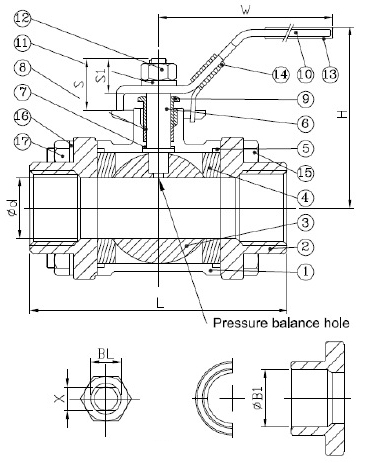

MATERIAL SPECIFICATIONS

No. Part Material
1 Body Stainless Steel 316
2 Cap Stainless Steel 316
3 Ball Stainless Steel 316
4 Ball Seat R.PTFE
5 Joint Gasket R.PTFE
6 Stem Stainless Steel AISI 316
7 Thrust Washer R.PTFE
8 Stem Packing R.PTFE
9 Gland Nut Stainless Steel AISI 304
10 Handle Stainless Steel AISI 430
11 Stem Washer Stainless Steel AISI 304
12 Stem Nut Stainless Steel AISI 304
13 Handle Sleeve PVC
14 Lock Device Stainless Steel AISI 430
15 Bolt Stainless Steel AISI 304
16 Spring Washer Stainless Steel AISI 304
17 Hex Nut Stainless Steel AISI 304



DIMENSIONS

Part # Size Ød L±2 H±5 W ØB1 S±1 S1±1 X BL Cv Torque lb-ft Weight (lb)
30SSSW01 1/4” 0.46 2.29 1.97 4.33 0.55 0.55 0.37 0.20 M8 6.6 3.33 0.84
30SSSW02 3/8” 0.49 2.29 1.97 4.33 0.71 0.55 0.37 0.20 M8 6.6 3.33 0.79
30SSSW03 1/2” 0.59 2.70 2.17 4.53 0.85 0.64 0.43 0.20 M8 11.2 4.48 0.95
30SSSW04 3/4” 0.79 3.31 2.36 5.32 1.07 0.78 0.47 0.26 M8 21 6.15 1.52
30SSSW05 1” 0.99 3.51 2.84 5.71 1.34 0.83 0.57 0.32 M10 34 8.82 2.29
30SSSW06 1-1/4” 1.26 4.41 3.07 5.71 1.69 0.83 0.57 0.32 M10 57 12.48 3.57
30SSSW07 1-1/2” 1.50 4.77 3.59 6.90 1.93 1.04 0.69 0.35 M12 80 16.64 5.05
30SSSW08 2” 1.97 5.75 4.14 6.90 2.42 1.04 0.69 0.35 M12 150 23.29 7.21
30SSSW09 2-1/2” 2.56 6.50 5.00 10.24 3.03 1.43 0.91 0.47 M16 265 39.93 15.52
30SSSW10 3” 3.15 7.21 5.40 10.24 3.53 1.25 0.91 0.47 M16 526 62.42 25.79
30SSSW11 4” 3.94 9.14 6.78 12.21 4.55 1.79 1.06 0.63 M24 780 91.50 48.50
