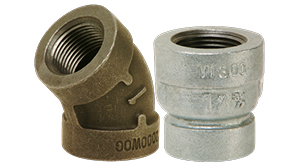

300# Black & Galvanized Malleable Iron Pipe Fittings

300# Black & Galvanized Malleable Iron Pipe Fittings

300# Black & Galvanized Malleable Iron Pipe Fittings

• Meets or exceeds all applicable ASTM and ANSI standards
• Stocked from 1/8" through 6" diameters
• 100% pressure tested before leaving the factory
• UL approval on Chinese Malleable fittings

90 Elbow | 45 Elbow | 90 Street Elbow | Union | Tee | Reducing Tee | Coupling | Reducing Coupling | Cap


90 Elbow

Size 1/4 3/8 1/2 3/4 1 1-1/4
A 0.94 1.06 1.25 1.44 1.63 1.94
Size 1-1/2 2 2-1/2 3 4
A 2.13 2.50 2.94 3.38 4.14

45 Elbow

Size 1/4 3/8 1/2 3/4 1 1-1/4
A 0.81 0.88 1.00 1.13 1.31 1.50
Size 1-1/2” 2 2-1/2 3 4
A 1.69 2.00 2.25 2.50 2.80

90 Street Elbow

Size 1/4 3/8 1/2 3/4 1 1-1/4
A 1.44 1.63 2.00 2.19 2.56 2.88
B 0.94 1.06 1.25 1.44 1.63 1.94
Size 1-1/2 2
A 3.13 3.69
B 2.13 2.50

Union

Size 1/4 3/8 1/2 3/4 1 1-1/4
A 0.71 0.77 0.97 1.08 1.14 1.30
B 0.63 0.69 0.79 0.83 0.91 1.02
C 0.71 0.87 1.06 1.14 1.28 1.50
D 1.56 1.71 1.81 2.13 2.30 2.66
Size 1-1/2 2 2-1/2 3 4
A 1.40 1.65 1.71 2.19 2.42
B 1.14 1.26 1.46 1.69 2.13
C 1.64 1.77 2.01 2.28 2.54
D 2.86 3.23 3.33 4.10 4.47

Tee

Size 1/4 3/8 1/2 3/4 1 1-1/4
A 0.94 1.06 1.25 1.44 1.63 1.94
Size 1-1/2 2 2-1/2 3 4
A 2.13 2.50 2.94 3.38 4.14

Reducing Tee

Size 3/4 x 1/2 1 x 1/2 1 x 3/4 1-1/4 x 3/4 1-1/4 x 1 1-1/2 x 1
A 1.30 1.44 1.50 1.63 1.75 1.81
B 1.30 1.44 1.50 1.63 1.75 1.81
C 1.38 1.50 1.56 1.75 1.81 2.00
Size 1-1/2 x 1-1/4 2 x 1-1/4 2 x 1-1/2 2-1/2 x 2 3 x 2
A 2.00 2.13 2.25 2.69 2.81
B 2.00 2.13 2.25 2.69 2.81
C 2.06 2.38 2.31 2.75 3.13

Coupling

Size 1/4 3/8 1/2 3/4 1 1-1/4
A 0.94 1.06 1.25 1.44 1.63 1.94
Size 1-1/2 2 2-1/2 3 4
A 2.13 2.50 2.94 3.38 4.14

Reducing Coupling

Size 3/8 x 1/4 1/2 x 1/4 1/2 x 3/8 3/4 x 3/8 3/4 x 1/2 1 x 1/2
A 1.63 1.69 1.69 1.75 1.75 2.00
Size 1 x 3/4 1-1/4 x 1/2 1-1/4 x 3/4 1-1/4 x 1 1-1/2 x 1/2 1-1/2 x 3/4
A 2.00 2.38 2.38 2.38 2.69 2.69
Size 1-1/2 x 1 1-1/2 x 1-1/4 2 x 1/2 2 x 3/4 2 x 1 2 x 1-1/4
A 2.69 2.69 3.19 3.19 3.19 3.19
Size 2 x 1-1/2 2-1/2 x 1-1/2 2-1/2 x 2 3 x 2 3 x 2-1/2
A 3.19 3.69 3.69 4.06 4.06

Cap

Size 3/8 1/2 3/4 1 1-1/4
A 0.83 0.98 1.08 1.26 1.38
Size 1-1/2 2 2-1/2 3 4
A 0.83 0.98 1.08 1.26 1.38
