29-2001PXLF Lead Free PEX Straight Supply Valve CP 1/2" Pex X 3/8" OD Comp X 3/8" OD

• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Straight
• Dual Outlet
• Temp. Rating: 32°F - 140°F
• 1/2" Pex X 3/8" OD Comp X 3/8" OD

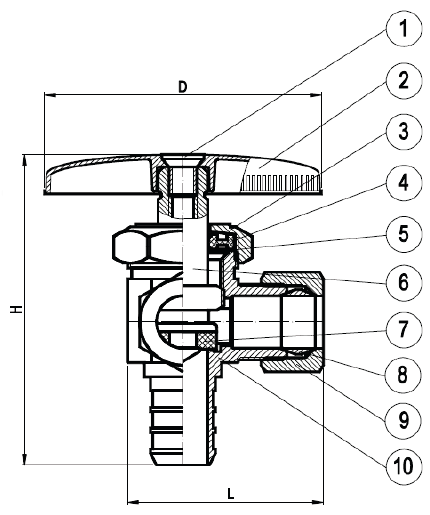

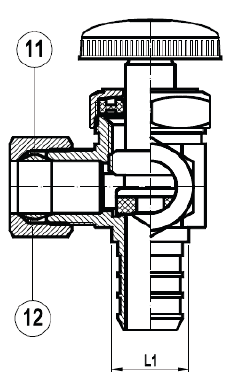

29-2001PXLF Lead Free PEX Straight Supply Valve CP 1/2" Pex X 3/8" OD Comp X 3/8" OD - Material Specifications

No. Part Material
1 Bolt JIS 3260 C2600W
2 Handle Zinc Alloy Z30A
3 Bonnet Brass B124 C37700
4 Packing EPDM SN-719F
5 Washer Stainless Steel 304
6 Stem Brass C89550
7 Seat Packing EPDM SN-719F
8 Sleeve Brass C89550
9 Packing Nut Brass B124 C37700
10 Body Brass C89550
11 Sleeve Brass C89550
12 Packing Nut Brass B124 C37700

Dimensions

Part # H L L1 D
29-2001PXLF 2.19 1.43 0.56 2.02
