29-2001LF & 29-2001BLF Lead Free Angle Supply Valve CP 5/8 OD X 3/8 OD X 3/8 OD

Valve Catalog

29-2001LF & 29-2001BLF Lead Free Angle Supply Valve CP 5/8 OD X 3/8 OD X 3/8 OD

• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Angel
• Comp Dual Outlet
• Temp. Rating: 32°F - 140°F
• 5/8" OD X 3/8" OD X 3/8" OD

29-2001BLF
• Same as Above - Unplated

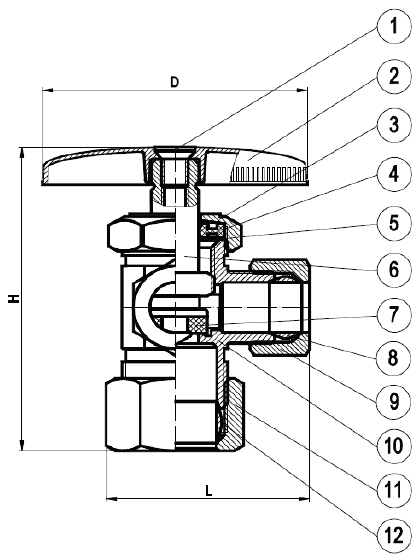

29-2001LF & 29-2001BLF Lead Free Angle Supply Valve CP 5/8 OD X 3/8 OD X 3/8 OD - Material Specifications

No. Part Material
1 Bolt JIS 3260 C2600W
2 Handle Zinc Alloy Z30A
3 Bonnet Brass B124 C37700
4 Packing EPDM SN-719F
5 Washer Stainless Steel 304
6 Stem Plastic
7 Seat Packing EPDM SN-719F
8 Sleeve Brass C89550
9 Packing Nut Brass B124 C37700
10 Body Brass C89550
11 Packing Nut Brass B124 C37700
12 Sleeve Brass C89550
13 Sleeve Brass C89550
14 Packing Nut Brass B124 C37700

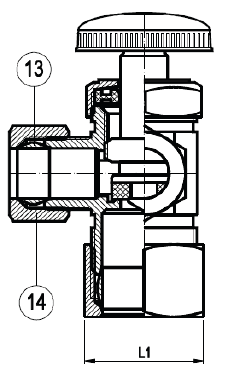

Dimensions

Part # H L L1 D
29-2001LF 2.31 1.55 0.91 2.02
