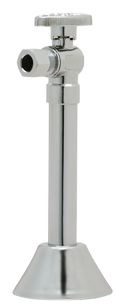

26-1041LF Lead Free 1/4 Turn Angle Supply Valve 1/2" SWT x 3/8" OD Compression - Long
26-1041LF Lead Free 1/4 Turn Angle Supply Valve 1/2" SWT x 3/8" OD Compression - Long
• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Angle
• With 5" Chrome Plate Tube & Escutcheon
• Temp. Rating: 32°F - 160°F
• 1/2" Sweat x 3/8" OD Compression

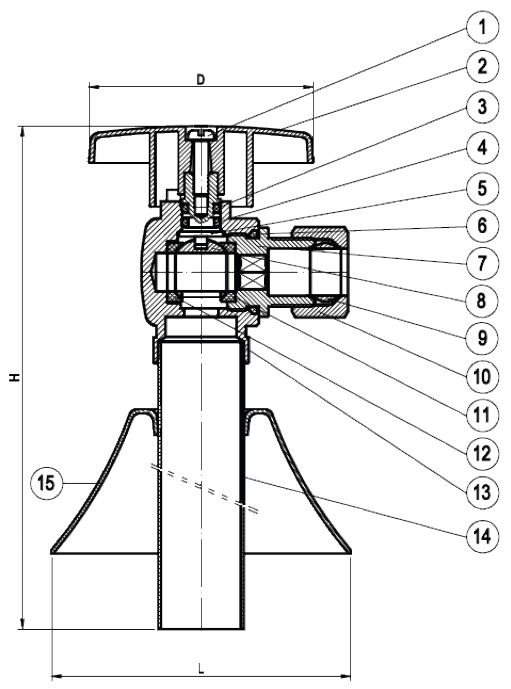

26-1041LF Angle Supply Valve - Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Bolt | Rod Carbon Steel SAE 1006 | ||||||
| 2 | Handle | Zinc Alloy | ||||||
| 3 | O-Ring | EPDM SN-719F | ||||||
| 4 | O-Ring | EPDM SN-719F | ||||||
| 5 | Stem | Brass C89550 | ||||||
| 6 | O-Ring | EPDM SN-719F | ||||||
| 7 | Outlet Nut | Brass C89550 | ||||||
| 8 | Ball | Brass C89550 | ||||||
| 9 | Sleeve | Brass C89550 | ||||||
| 10 | Packing Nut | Brass B124 C37700 | ||||||
| 11 | Packing | Plastic POM-M90 | ||||||
| 12 | Packing | Plastic POM-M90 | ||||||
| 13 | Body | Brass C89550 | ||||||
| 14 | Drain Pipe | Brass C27000 | ||||||
| 15 | Flange | Stainless Steel 304 | ||||||
Dimensions
| Part # | H | L | D | ||
|---|---|---|---|---|---|
| 26-1041LF | 6.70 | 2.41 | 1.79 | ||
