26-1016PXLF Lead Free 1/4 Turn Straight Supply Valve 1/2" PEX x 1/4" OD Compression
26-1016PXLF Lead Free 1/4 Turn Straight Supply Valve 1/2" PEX x 1/4" OD Compression
• Chrome Plated Lead Free Brass
• UPC, cUPC , NSF 61, & NSF 372 Compliant
• 125 PSI
• Straight
• 1/4 Turn
• Oval Handle
• Temp. Rating: 32°F - 160°F
• 1/2" PEX x 1/4" OD Compression

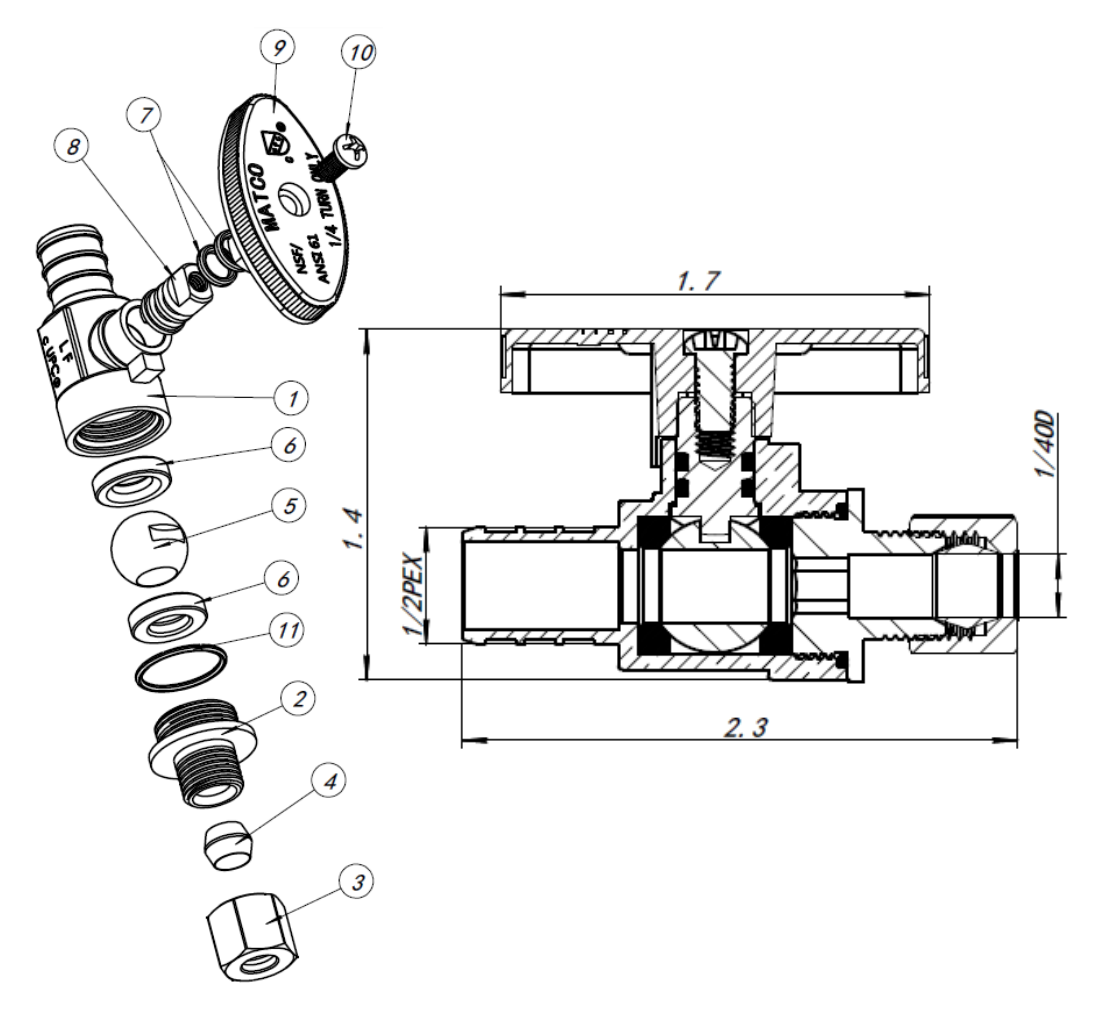

| No. | Part | Material |
|---|---|---|
| 1 | Body | Brass LF |
| 2 | Outlet Nut | Brass LF |
| 3 | Hex Cap | Brass |
| 4 | Sleeve | Brass LF |
| 5 | Ball | Brass LF |
| 6 | Ring | PTFE |
| 7 | O-Ring | NBR |
| 8 | Stem | Brass |
| 9 | Handle | Zinc Alloy |
| 10 | Screw | Steel |
| 11 | O-Ring | NBR |
