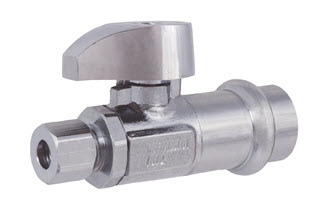

26-1016PLF Lead Free 1/4 Turn Straight Supply Valve 1/2" PRESS x 1/4" OD Compression
26-1016PLF Lead Free 1/4 Turn Straight Supply Valve 1/2" PRESS x 1/4" OD Compression
• Chrome Plated Lead Free Brass
• 1/4 Turn
• 125 PSI
• One Piece Body
• cUPC, NSF/ANSI 61 Certified
• Temp. Rating: 32°F - 160°F
• 1/2” Press x 1/4” Compression
MATERIAL SPECIFICATIONS
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Cutting Sleeve | H65 | ||||
| 2 | Nut | Brass C37700 | ||||
| 3 | Bonnet | Brass C46500 | ||||
| 4 | Seal Seat | PTFE | ||||
| 5 | Ball | Brass C46500 | ||||
| 6 | Body | Brass C46500 | ||||
| 7 | O-Ring | EPDM | ||||
| 9 | Screw | AISI 201 | ||||
| 11 | Handle | Zamak5 | ||||
| 12 | Stem | Brass C46500 | ||||
| 13 | O-Ring | EPDM | ||||
