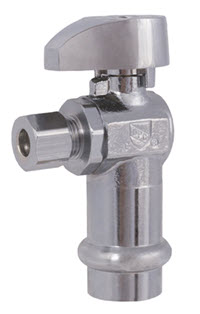

26-1015PLF Lead Free 1/4 Turn Angle Supply Valve 1/2 PRESS x 1/4 OD Compression

26-1015PLF Lead Free 1/4 Turn Angle Supply Valve 1/2 PRESS x 1/4 OD Compression

• Chrome Plated Lead Free Brass
• 1/4 Turn
• 125 PSI
• One Piece Body
• cUPC, NSF/ANSI 61 Certified
• Temp. Rating: 32°F - 160°F
• 1/2” Press x 1/4” Compression

MATERIAL SPECIFICATIONS

No. Part Material
1 Cutting Sleeve H62
2 Bonnett Brass C46500
3 Nut Brass C37700
4 Body Brass C46500
5 O-Ring EPDM
6 Ball Brass C46500
7 Seal Seat PTFE
8 Stem Brass C46500
9 O-Ring EPDM
10 Screw AISI 201
11 Handle Zamak5
